Main schema ch-patent-doc-v1-0-ige2-0.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default qualified
Element name
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content simple
Used by
Element Group name_group
Source

<xs:element name="name" type="xs:string"/>
Element address-1
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content simple
Used by

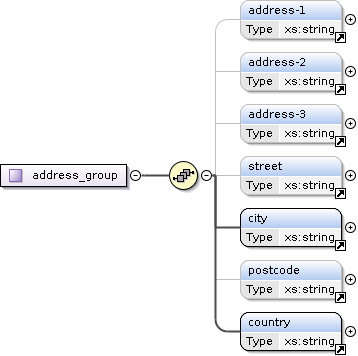

Complex Type address_group
Source

<xs:element name="address-1" type="xs:string"/>
Element address-2
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content simple
Used by
Complex Type address_group
Source

<xs:element name="address-2" type="xs:string"/>
Element address-3
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content simple
Used by
Complex Type address_group
Source

<xs:element name="address-3" type="xs:string"/>
Element street
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content simple
Used by
Complex Type address_group
Source

<xs:element name="street" type="xs:string"/>
Element city
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content simple
Used by
Complex Type address_group
Source

<xs:element name="city" type="xs:string"/>
Element postcode
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content simple
Used by
Complex Type address_group
Source

<xs:element name="postcode" type="xs:string"/>
Element country
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content simple
Used by
Source

<xs:element name="country" type="xs:string"/>

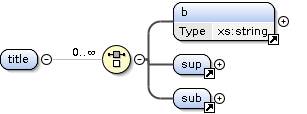

Element title
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#bch-patent-doc-v1-0-ige2-0_xsd.tmp#supch-patent-doc-v1-0-ige2-0_xsd.tmp#sub
Properties
content complex
mixed true
Used by
Element Group titles
Model
b | sup | sub
Children b, sub, sup
Instance

<title>
  <b>{1,1}</b>
  <sup>{1,1}</sup>
  <sub>{1,1}</sub>
</title>
Source

<xs:element name="title">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="b"/>
      <xs:element ref="sup"/>
      <xs:element ref="sub"/>
    </xs:choice>
  </xs:complexType>
</xs:element>
Element b
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content simple
Used by
Source

<xs:element name="b" type="xs:string"/>
Element sup
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#bch-patent-doc-v1-0-ige2-0_xsd.tmp#sup2ch-patent-doc-v1-0-ige2-0_xsd.tmp#sub2
Properties
content complex
mixed true
Used by
Model
b | sup2 | sub2
Children b, sub2, sup2
Instance

<sup>
  <b>{1,1}</b>
  <sup2>{1,1}</sup2>
  <sub2>{1,1}</sub2>
</sup>
Source

<xs:element name="sup">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="b"/>
      <xs:element ref="sup2"/>
      <xs:element ref="sub2"/>
    </xs:choice>
  </xs:complexType>
</xs:element>
Element sup2
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#b
Properties
content complex
mixed true
Used by
Elements sub, sup
Model
Children b
Instance

<sup2>
  <b>{0,unbounded}</b>
</sup2>
Source

<xs:element name="sup2">
  <xs:complexType mixed="true">
    <xs:sequence>
      <xs:element ref="b" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element sub2
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#b
Properties
content complex
mixed true
Used by
Elements sub, sup
Model
Children b
Instance

<sub2>
  <b>{0,unbounded}</b>
</sub2>
Source

<xs:element name="sub2">
  <xs:complexType mixed="true">
    <xs:sequence>
      <xs:element ref="b" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

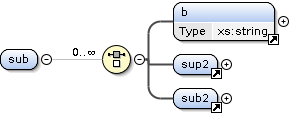

Element sub
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#bch-patent-doc-v1-0-ige2-0_xsd.tmp#sup2ch-patent-doc-v1-0-ige2-0_xsd.tmp#sub2
Properties
content complex
mixed true
Used by
Model
b | sup2 | sub2
Children b, sub2, sup2
Instance

<sub>
  <b>{1,1}</b>
  <sup2>{1,1}</sup2>
  <sub2>{1,1}</sub2>
</sub>
Source

<xs:element name="sub">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="b"/>
      <xs:element ref="sup2"/>
      <xs:element ref="sub2"/>
    </xs:choice>
  </xs:complexType>
</xs:element>
Element br
Namespace No namespace
Diagram
Diagram
Properties
content complex
Used by

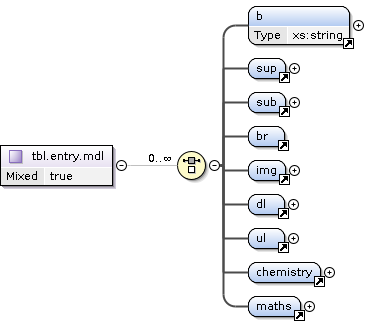

Complex Type tbl.entry.mdl
Elements claim-text, dd, entry, li, p
Source

<xs:element name="br">
  <xs:complexType/>
</xs:element>

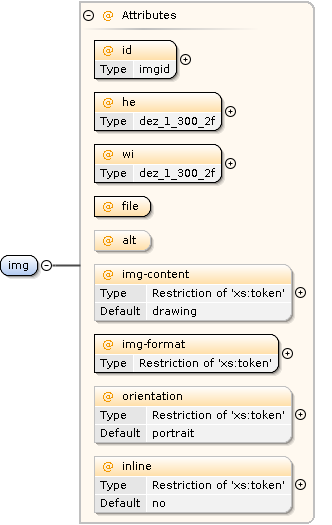

Element img
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#img_idch-patent-doc-v1-0-ige2-0_xsd.tmp#img_hech-patent-doc-v1-0-ige2-0_xsd.tmp#img_wich-patent-doc-v1-0-ige2-0_xsd.tmp#img_filech-patent-doc-v1-0-ige2-0_xsd.tmp#img_altch-patent-doc-v1-0-ige2-0_xsd.tmp#img_img-contentch-patent-doc-v1-0-ige2-0_xsd.tmp#img_img-formatch-patent-doc-v1-0-ige2-0_xsd.tmp#img_orientationch-patent-doc-v1-0-ige2-0_xsd.tmp#img_inline
Properties
content complex
Used by
Complex Type tbl.entry.mdl
Elements chemistry, claim-text, dd, entry, figure, li, maths, p, tables
Attributes
QName Type Default Use
alt optional
file required
he dez_1_300_2f required
id imgid required
img-content restriction of xs:token drawing optional
img-format restriction of xs:token required
inline restriction of xs:token no optional
orientation restriction of xs:token portrait optional
wi dez_1_300_2f required
Source

<xs:element name="img">
  <xs:complexType>
    <xs:attribute name="id" type="imgid" use="required"/>
    <xs:attribute name="he" type="dez_1_300_2f" use="required"/>
    <xs:attribute name="wi" type="dez_1_300_2f" use="required"/>
    <xs:attribute name="file" use="required"/>
    <xs:attribute name="alt"/>
    <xs:attribute name="img-content" default="drawing">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="drawing"/>
          <xs:enumeration value="chem"/>
          <xs:enumeration value="table"/>
          <xs:enumeration value="math"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="img-format" use="required">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="jpg"/>
          <xs:enumeration value="tif"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="orientation" default="portrait">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="portrait"/>
          <xs:enumeration value="landscape"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="inline" default="no">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="yes"/>
          <xs:enumeration value="no"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
  </xs:complexType>
</xs:element>
Element dl
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#dl_tsizech-patent-doc-v1-0-ige2-0_xsd.tmp#dl_idch-patent-doc-v1-0-ige2-0_xsd.tmp#dtch-patent-doc-v1-0-ige2-0_xsd.tmp#dd
Properties
content complex
Used by
Complex Type tbl.entry.mdl
Elements entry, p
Model
dt , dd
Children dd, dt
Instance

<dl id="" tsize="">
  <dt id="">{1,1}</dt>
  <dd>{1,1}</dd>
</dl>
Attributes
QName Type Use
id xs:ID optional
tsize dez_1_300_2f required
Source

<xs:element name="dl">
  <xs:complexType>
    <xs:sequence maxOccurs="unbounded">
      <xs:element ref="dt"/>
      <xs:element ref="dd"/>
    </xs:sequence>
    <xs:attribute name="tsize" type="dez_1_300_2f" use="required"/>
    <xs:attribute name="id" type="xs:ID"/>
  </xs:complexType>
</xs:element>
Element dt
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#dt_idch-patent-doc-v1-0-ige2-0_xsd.tmp#bch-patent-doc-v1-0-ige2-0_xsd.tmp#supch-patent-doc-v1-0-ige2-0_xsd.tmp#sub
Properties
content complex
mixed true
Used by
Element dl
Model
b | sup | sub
Children b, sub, sup
Instance

<dt id="">
  <b>{1,1}</b>
  <sup>{1,1}</sup>
  <sub>{1,1}</sub>
</dt>
Attributes
QName Type Use
id xs:ID optional
Source

<xs:element name="dt">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="b"/>
      <xs:element ref="sup"/>
      <xs:element ref="sub"/>
    </xs:choice>
    <xs:attribute name="id" type="xs:ID"/>
  </xs:complexType>
</xs:element>

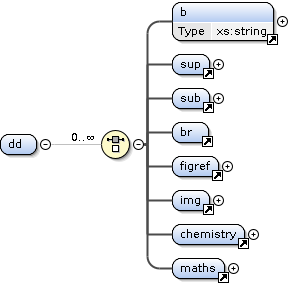

Element dd
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#bch-patent-doc-v1-0-ige2-0_xsd.tmp#supch-patent-doc-v1-0-ige2-0_xsd.tmp#subch-patent-doc-v1-0-ige2-0_xsd.tmp#brch-patent-doc-v1-0-ige2-0_xsd.tmp#figrefch-patent-doc-v1-0-ige2-0_xsd.tmp#imgch-patent-doc-v1-0-ige2-0_xsd.tmp#chemistrych-patent-doc-v1-0-ige2-0_xsd.tmp#maths
Properties
content complex
mixed true
Used by
Element dl
Model
Children b, br, chemistry, figref, img, maths, sub, sup
Instance

<dd>
  <b>{1,1}</b>
  <sup>{1,1}</sup>
  <sub>{1,1}</sub>
  <br>{1,1}</br>
  <figref idref="" num="">{1,1}</figref>
  <img alt="" file="" he="" id="" img-content="drawing" img-format="" inline="no" orientation="portrait" wi="">{1,1}</img>
  <chemistry id="" num="">{1,1}</chemistry>
  <maths id="" num="">{1,1}</maths>
</dd>
Source

<xs:element name="dd">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="b"/>
      <xs:element ref="sup"/>
      <xs:element ref="sub"/>
      <xs:element ref="br"/>
      <xs:element ref="figref"/>
      <xs:element ref="img"/>
      <xs:element ref="chemistry"/>
      <xs:element ref="maths"/>
    </xs:choice>
  </xs:complexType>
</xs:element>
Element figref
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#figref_idrefch-patent-doc-v1-0-ige2-0_xsd.tmp#figref_numch-patent-doc-v1-0-ige2-0_xsd.tmp#bch-patent-doc-v1-0-ige2-0_xsd.tmp#supch-patent-doc-v1-0-ige2-0_xsd.tmp#sub
Properties
content complex
mixed true
Used by
Elements claim-text, dd, li, p
Model
b | sup | sub
Children b, sub, sup
Instance

<figref idref="" num="">
  <b>{1,1}</b>
  <sup>{1,1}</sup>
  <sub>{1,1}</sub>
</figref>
Attributes
QName Type Use
idref xs:IDREFS optional
num num optional
Source

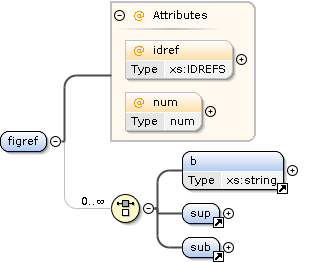

<xs:element name="figref">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="b"/>
      <xs:element ref="sup"/>
      <xs:element ref="sub"/>
    </xs:choice>
    <xs:attribute name="idref" type="xs:IDREFS"/>
    <xs:attribute name="num" type="num"/>
  </xs:complexType>
</xs:element>
Element chemistry
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#chemistry_idch-patent-doc-v1-0-ige2-0_xsd.tmp#chemistry_numch-patent-doc-v1-0-ige2-0_xsd.tmp#img
Properties
content complex
Used by
Elements claim-text, dd, entry, li, p
Complex Type tbl.entry.mdl
Model
Children img
Instance

<chemistry id="" num="">
  <img alt="" file="" he="" id="" img-content="drawing" img-format="" inline="no" orientation="portrait" wi="">{1,1}</img>
</chemistry>
Attributes
QName Type Use
id chemistryid optional
num num required
Source

<xs:element name="chemistry">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="img"/>
    </xs:sequence>
    <xs:attribute name="id" type="chemistryid"/>
    <xs:attribute name="num" type="num" use="required"/>
  </xs:complexType>
</xs:element>
Element maths
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#maths_idch-patent-doc-v1-0-ige2-0_xsd.tmp#maths_numch-patent-doc-v1-0-ige2-0_xsd.tmp#img
Properties
content complex
Used by
Elements claim-text, dd, entry, li, p
Complex Type tbl.entry.mdl
Model
Children img
Instance

<maths id="" num="">
  <img alt="" file="" he="" id="" img-content="drawing" img-format="" inline="no" orientation="portrait" wi="">{1,1}</img>
</maths>
Attributes
QName Type Use
id mathsid optional
num num required
Source

<xs:element name="maths">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="img"/>
    </xs:sequence>
    <xs:attribute name="id" type="mathsid"/>
    <xs:attribute name="num" type="num" use="required"/>
  </xs:complexType>
</xs:element>

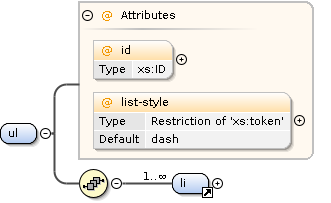

Element ul
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#ul_idch-patent-doc-v1-0-ige2-0_xsd.tmp#ul_list-stylech-patent-doc-v1-0-ige2-0_xsd.tmp#li
Properties
content complex
Used by
Complex Type tbl.entry.mdl
Elements entry, p
Model
Children li
Instance

<ul id="" list-style="dash">
  <li id="" num="">{1,unbounded}</li>
</ul>
Attributes
QName Type Default Use
id xs:ID optional
list-style restriction of xs:token dash optional
Source

<xs:element name="ul">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="li" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="id" type="xs:ID"/>
    <xs:attribute name="list-style" default="dash">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="dash"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
  </xs:complexType>
</xs:element>

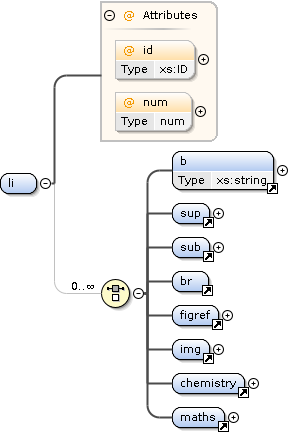

Element li
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#li_idch-patent-doc-v1-0-ige2-0_xsd.tmp#li_numch-patent-doc-v1-0-ige2-0_xsd.tmp#bch-patent-doc-v1-0-ige2-0_xsd.tmp#supch-patent-doc-v1-0-ige2-0_xsd.tmp#subch-patent-doc-v1-0-ige2-0_xsd.tmp#brch-patent-doc-v1-0-ige2-0_xsd.tmp#figrefch-patent-doc-v1-0-ige2-0_xsd.tmp#imgch-patent-doc-v1-0-ige2-0_xsd.tmp#chemistrych-patent-doc-v1-0-ige2-0_xsd.tmp#maths
Properties
content complex
mixed true
Used by
Element ul
Model
Children b, br, chemistry, figref, img, maths, sub, sup
Instance

<li id="" num="">
  <b>{1,1}</b>
  <sup>{1,1}</sup>
  <sub>{1,1}</sub>
  <br>{1,1}</br>
  <figref idref="" num="">{1,1}</figref>
  <img alt="" file="" he="" id="" img-content="drawing" img-format="" inline="no" orientation="portrait" wi="">{1,1}</img>
  <chemistry id="" num="">{1,1}</chemistry>
  <maths id="" num="">{1,1}</maths>
</li>
Attributes
QName Type Use
id xs:ID optional
num num optional
Source

<xs:element name="li">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="b"/>
      <xs:element ref="sup"/>
      <xs:element ref="sub"/>
      <xs:element ref="br"/>
      <xs:element ref="figref"/>
      <xs:element ref="img"/>
      <xs:element ref="chemistry"/>
      <xs:element ref="maths"/>
    </xs:choice>
    <xs:attribute name="id" type="xs:ID"/>
    <xs:attribute name="num" type="num"/>
  </xs:complexType>
</xs:element>

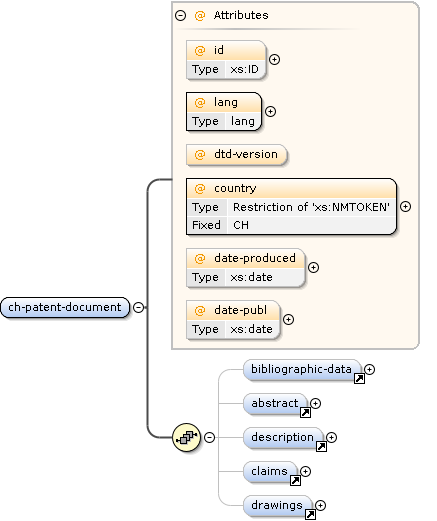

Element ch-patent-document
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#ch-patent-document_idch-patent-doc-v1-0-ige2-0_xsd.tmp#ch-patent-document_langch-patent-doc-v1-0-ige2-0_xsd.tmp#ch-patent-document_dtd-versionch-patent-doc-v1-0-ige2-0_xsd.tmp#ch-patent-document_countrych-patent-doc-v1-0-ige2-0_xsd.tmp#ch-patent-document_date-producedch-patent-doc-v1-0-ige2-0_xsd.tmp#ch-patent-document_date-publch-patent-doc-v1-0-ige2-0_xsd.tmp#bibliographic-datach-patent-doc-v1-0-ige2-0_xsd.tmp#abstractch-patent-doc-v1-0-ige2-0_xsd.tmp#descriptionch-patent-doc-v1-0-ige2-0_xsd.tmp#claimsch-patent-doc-v1-0-ige2-0_xsd.tmp#drawings
Properties
content complex
Model
Children abstract, bibliographic-data, claims, description, drawings
Instance

<ch-patent-document country="CH" date-produced="" date-publ="" dtd-version="" id="" lang="">
  <bibliographic-data id="">{0,1}</bibliographic-data>
  <abstract id="">{0,1}</abstract>
  <description id="">{0,1}</description>
  <claims id="">{0,1}</claims>
  <drawings id="">{0,1}</drawings>
</ch-patent-document>
Attributes
QName Type Fixed Use
country restriction of xs:NMTOKEN CH required
date-produced xs:date optional
date-publ xs:date optional
dtd-version optional
id xs:ID optional
lang lang required
Source

<xs:element name="ch-patent-document">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="bibliographic-data" minOccurs="0"/>
      <xs:element ref="abstract" minOccurs="0"/>
      <xs:element ref="description" minOccurs="0"/>
      <xs:element ref="claims" minOccurs="0"/>
      <xs:element ref="drawings" minOccurs="0"/>
    </xs:sequence>
    <xs:attribute name="id" type="xs:ID"/>
    <xs:attribute name="lang" type="lang" use="required"/>
    <xs:attribute name="dtd-version"/>
    <xs:attribute name="country" use="required" fixed="CH">
      <xs:simpleType>
        <xs:restriction base="xs:NMTOKEN">
          <xs:enumeration value="CH"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="date-produced" type="xs:date"/>
    <xs:attribute name="date-publ" type="xs:date"/>
  </xs:complexType>
</xs:element>

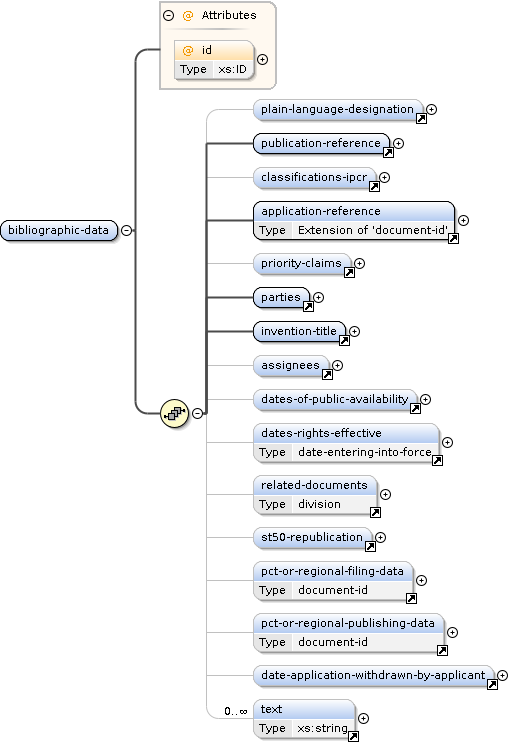

Element bibliographic-data
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#bibliographic-data_idch-patent-doc-v1-0-ige2-0_xsd.tmp#plain-language-designationch-patent-doc-v1-0-ige2-0_xsd.tmp#publication-referencech-patent-doc-v1-0-ige2-0_xsd.tmp#classifications-ipcrch-patent-doc-v1-0-ige2-0_xsd.tmp#application-referencech-patent-doc-v1-0-ige2-0_xsd.tmp#priority-claimsch-patent-doc-v1-0-ige2-0_xsd.tmp#partiesch-patent-doc-v1-0-ige2-0_xsd.tmp#invention-titlech-patent-doc-v1-0-ige2-0_xsd.tmp#assigneesch-patent-doc-v1-0-ige2-0_xsd.tmp#dates-of-public-availabilitych-patent-doc-v1-0-ige2-0_xsd.tmp#dates-rights-effectivech-patent-doc-v1-0-ige2-0_xsd.tmp#related-documentsch-patent-doc-v1-0-ige2-0_xsd.tmp#st50-republicationch-patent-doc-v1-0-ige2-0_xsd.tmp#pct-or-regional-filing-datach-patent-doc-v1-0-ige2-0_xsd.tmp#pct-or-regional-publishing-datach-patent-doc-v1-0-ige2-0_xsd.tmp#date-application-withdrawn-by-applicantch-patent-doc-v1-0-ige2-0_xsd.tmp#text
Properties
content complex
Used by
Model
Children application-reference, assignees, classifications-ipcr, date-application-withdrawn-by-applicant, dates-of-public-availability, dates-rights-effective, invention-title, parties, pct-or-regional-filing-data, pct-or-regional-publishing-data, plain-language-designation, priority-claims, publication-reference, related-documents, st50-republication, text
Instance

<bibliographic-data id="">
  <plain-language-designation lang="">{0,1}</plain-language-designation>
  <publication-reference id="">{1,1}</publication-reference>
  <classifications-ipcr id="">{0,1}</classifications-ipcr>
  <application-reference appl-type="" id="">{1,1}</application-reference>
  <priority-claims>{0,1}</priority-claims>
  <parties>{1,1}</parties>
  <invention-title id="">{1,1}</invention-title>
  <assignees>{0,1}</assignees>
  <dates-of-public-availability>{0,1}</dates-of-public-availability>
  <dates-rights-effective>{0,1}</dates-rights-effective>
  <related-documents>{0,1}</related-documents>
  <st50-republication>{0,1}</st50-republication>
  <pct-or-regional-filing-data>{0,1}</pct-or-regional-filing-data>
  <pct-or-regional-publishing-data>{0,1}</pct-or-regional-publishing-data>
  <date-application-withdrawn-by-applicant>{0,1}</date-application-withdrawn-by-applicant>
  <text>{0,unbounded}</text>
</bibliographic-data>
Attributes
QName Type Use
id xs:ID optional
Source

<xs:element name="bibliographic-data">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="plain-language-designation" minOccurs="0"/>
      <xs:element ref="publication-reference"/>
      <xs:element ref="classifications-ipcr" minOccurs="0"/>
      <xs:element ref="application-reference"/>
      <xs:element ref="priority-claims" minOccurs="0"/>
      <xs:element ref="parties"/>
      <xs:element ref="invention-title"/>
      <xs:element ref="assignees" minOccurs="0"/>
      <xs:element ref="dates-of-public-availability" minOccurs="0"/>
      <xs:element ref="dates-rights-effective" minOccurs="0"/>
      <xs:element ref="related-documents" minOccurs="0"/>
      <xs:element ref="st50-republication" minOccurs="0"/>
      <xs:element ref="pct-or-regional-filing-data" minOccurs="0"/>
      <xs:element ref="pct-or-regional-publishing-data" minOccurs="0"/>
      <xs:element ref="date-application-withdrawn-by-applicant" minOccurs="0"/>
      <xs:element ref="text" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="id" type="xs:ID"/>
  </xs:complexType>
</xs:element>
Element plain-language-designation
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#plain-language-designation_lang
Properties
content complex
mixed true
Used by
Model
Attributes
QName Type Use
lang restriction of xs:string optional
Source

<xs:element name="plain-language-designation">
  <xs:complexType mixed="true">
    <xs:attribute name="lang">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:enumeration value="PATENTSCHRIFT"/>
          <xs:enumeration value="FASCICULE DU BREVET"/>
          <xs:enumeration value="FASCICOLO DES BREVETTO"/>
          <xs:enumeration value="TEILVERZICHT"/>
          <xs:enumeration value="RENONCIATION PARTIELLE"/>
          <xs:enumeration value="RINUNCIA PARZIALE"/>
          <xs:enumeration value="TEILNICHTIGKEIT"/>
          <xs:enumeration value="NULLITÉ PARTIELLE"/>
          <xs:enumeration value="NULLITÀ PARZIALE"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
  </xs:complexType>
</xs:element>
Element publication-reference
Namespace No namespace

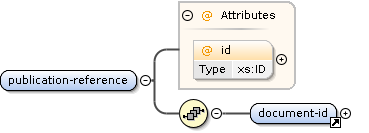

Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#publication-reference_idch-patent-doc-v1-0-ige2-0_xsd.tmp#document-id
Properties
content complex
Used by
Model
Children document-id
Instance

<publication-reference id="">
  <document-id>{1,1}</document-id>
</publication-reference>
Attributes
QName Type Use
id xs:ID optional
Source

<xs:element name="publication-reference">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="document-id"/>
    </xs:sequence>
    <xs:attribute name="id" type="xs:ID"/>
  </xs:complexType>
</xs:element>
Element document-id
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#countrych-patent-doc-v1-0-ige2-0_xsd.tmp#doc-numberch-patent-doc-v1-0-ige2-0_xsd.tmp#NO_NAMESPACE_kindch-patent-doc-v1-0-ige2-0_xsd.tmp#date
Properties
content complex
Used by
Model
Children country, date, doc-number, kind
Instance

<document-id>
  <country>{1,1}</country>
  <doc-number>{1,1}</doc-number>
  <kind>{0,1}</kind>
  <date>{0,1}</date>
</document-id>
Source

<xs:element name="document-id">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="country"/>
      <xs:element ref="doc-number"/>
      <xs:element ref="kind" minOccurs="0"/>
      <xs:element ref="date" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element doc-number
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content simple
Used by
Source

<xs:element name="doc-number" type="xs:string"/>
Element kind
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#kind
Type kind
Properties
content simple
Facets
enumeration A5
enumeration A8
enumeration A9
enumeration B8
enumeration B9
enumeration C1
enumeration C2
enumeration C3
enumeration C9
enumeration H1
enumeration H2
enumeration H3
enumeration H9
Used by
Element document-id
Source

<xs:element name="kind" type="kind"/>
Element date
Namespace No namespace
Diagram
Diagram
Type xs:date
Properties
content simple
Used by
Source

<xs:element name="date" type="xs:date"/>

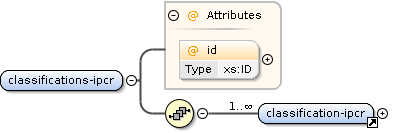

Element classifications-ipcr
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#classifications-ipcr_idch-patent-doc-v1-0-ige2-0_xsd.tmp#classification-ipcr
Properties
content complex
Used by
Model
Children classification-ipcr
Instance

<classifications-ipcr id="">
  <classification-ipcr id="" sequence="">{1,unbounded}</classification-ipcr>
</classifications-ipcr>
Attributes
QName Type Use
id xs:ID optional
Source

<xs:element name="classifications-ipcr">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="classification-ipcr" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="id" type="xs:ID"/>
  </xs:complexType>
</xs:element>

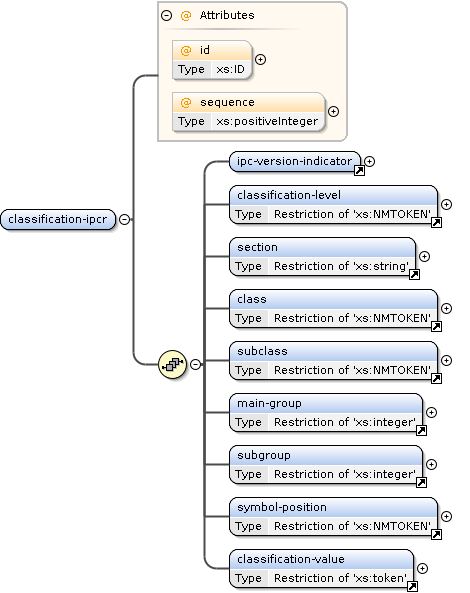

Element classification-ipcr
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#classification-ipcr_idch-patent-doc-v1-0-ige2-0_xsd.tmp#classification-ipcr_sequencech-patent-doc-v1-0-ige2-0_xsd.tmp#ipc-version-indicatorch-patent-doc-v1-0-ige2-0_xsd.tmp#classification-levelch-patent-doc-v1-0-ige2-0_xsd.tmp#sectionch-patent-doc-v1-0-ige2-0_xsd.tmp#classch-patent-doc-v1-0-ige2-0_xsd.tmp#subclassch-patent-doc-v1-0-ige2-0_xsd.tmp#main-groupch-patent-doc-v1-0-ige2-0_xsd.tmp#subgroupch-patent-doc-v1-0-ige2-0_xsd.tmp#symbol-positionch-patent-doc-v1-0-ige2-0_xsd.tmp#classification-value
Properties
content complex
Used by
Model
Children class, classification-level, classification-value, ipc-version-indicator, main-group, section, subclass, subgroup, symbol-position
Instance

<classification-ipcr id="" sequence="">
  <ipc-version-indicator>{1,1}</ipc-version-indicator>
  <classification-level>{1,1}</classification-level>
  <section>{1,1}</section>
  <class>{1,1}</class>
  <subclass>{1,1}</subclass>
  <main-group>{1,1}</main-group>
  <subgroup>{1,1}</subgroup>
  <symbol-position>{1,1}</symbol-position>
  <classification-value>{1,1}</classification-value>
</classification-ipcr>
Attributes
QName Type Use
id xs:ID optional
sequence xs:positiveInteger optional
Source

<xs:element name="classification-ipcr">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="ipc-version-indicator"/>
      <xs:element ref="classification-level"/>
      <xs:element ref="section"/>
      <xs:element ref="class"/>
      <xs:element ref="subclass"/>
      <xs:element ref="main-group"/>
      <xs:element ref="subgroup"/>
      <xs:element ref="symbol-position"/>
      <xs:element ref="classification-value"/>
    </xs:sequence>
    <xs:attribute name="id" type="xs:ID"/>
    <xs:attribute name="sequence" type="xs:positiveInteger"/>
  </xs:complexType>
</xs:element>
Element ipc-version-indicator
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#date
Properties
content complex
Used by
Model
Children date
Instance

<ipc-version-indicator>
  <date>{1,1}</date>
</ipc-version-indicator>
Source

<xs:element name="ipc-version-indicator">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="date"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element classification-level
Namespace No namespace
Diagram
Diagram
Type restriction of xs:NMTOKEN
Properties
content simple
Facets
enumeration ipcr-advanced
Used by
Source

<xs:element name="classification-level">
  <xs:simpleType>
    <xs:restriction base="xs:NMTOKEN">
      <xs:enumeration value="ipcr-advanced"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element section
Namespace No namespace
Diagram
Diagram
Type restriction of xs:string
Properties
content simple
Facets
pattern [A-Z]{1}
Used by
Source

<xs:element name="section">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:pattern value="[A-Z]{1}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element class
Namespace No namespace
Diagram
Diagram
Type restriction of xs:NMTOKEN
Properties
content simple
Facets
pattern (\c+) & ([0-9]{2})
Used by
Source

<xs:element name="class">
  <xs:simpleType>
    <xs:restriction base="xs:NMTOKEN">
      <xs:pattern value="[0-9]{2}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element subclass
Namespace No namespace
Diagram
Diagram
Type restriction of xs:NMTOKEN
Properties
content simple
Facets
pattern (\c+) & ([A-Z]{1})
Used by
Source

<xs:element name="subclass">
  <xs:simpleType>
    <xs:restriction base="xs:NMTOKEN">
      <xs:pattern value="[A-Z]{1}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element main-group
Namespace No namespace
Diagram
Diagram
Type restriction of xs:integer
Properties
content simple
Facets
maxInclusive 9999
minInclusive 1
Used by
Source

<xs:element name="main-group">
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="9999"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element subgroup
Namespace No namespace
Diagram
Diagram
Type restriction of xs:integer
Properties
content simple
Facets
maxInclusive 999999
minInclusive 0
Used by
Source

<xs:element name="subgroup">
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="999999"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element symbol-position
Namespace No namespace
Diagram
Diagram
Type restriction of xs:NMTOKEN
Properties
content simple
Facets
enumeration first-symbol-position
enumeration later-symbol-position
Used by
Source

<xs:element name="symbol-position">
  <xs:simpleType>
    <xs:restriction base="xs:NMTOKEN">
      <xs:enumeration value="first-symbol-position"/>
      <xs:enumeration value="later-symbol-position"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element classification-value
Namespace No namespace
Diagram
Diagram
Type restriction of xs:token
Properties
content simple
Facets
enumeration invention
enumeration non-invention
Used by
Source

<xs:element name="classification-value">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="invention"/>
      <xs:enumeration value="non-invention"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element application-reference
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#document-idch-patent-doc-v1-0-ige2-0_xsd.tmp#NO_NAMESPACE_document-idch-patent-doc-v1-0-ige2-0_xsd.tmp#application-reference_idch-patent-doc-v1-0-ige2-0_xsd.tmp#application-reference_appl-type
Type extension of document-id
Type hierarchy
Properties
content complex
Used by
Model
Children document-id
Instance

<application-reference appl-type="" id="">
  <document-id>{1,1}</document-id>
</application-reference>
Attributes
QName Type Use
appl-type required
id xs:ID optional
Source

<xs:element name="application-reference">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="document-id">
        <xs:attribute name="id" type="xs:ID"/>
        <xs:attribute name="appl-type" use="required"/>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
Element priority-claims
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#priority-claim
Properties
content complex
Used by
Model
Children priority-claim
Instance

<priority-claims>
  <priority-claim id="" kind="" sequence="">{1,unbounded}</priority-claim>
</priority-claims>
Source

<xs:element name="priority-claims">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="priority-claim" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element priority-claim
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#priority-claim_idch-patent-doc-v1-0-ige2-0_xsd.tmp#priority-claim_sequencech-patent-doc-v1-0-ige2-0_xsd.tmp#priority-claim_kindch-patent-doc-v1-0-ige2-0_xsd.tmp#countrych-patent-doc-v1-0-ige2-0_xsd.tmp#doc-numberch-patent-doc-v1-0-ige2-0_xsd.tmp#date
Properties
content complex
Used by
Element priority-claims
Model
Children country, date, doc-number
Instance

<priority-claim id="" kind="" sequence="">
  <country>{1,1}</country>
  <doc-number>{0,1}</doc-number>
  <date>{1,1}</date>
</priority-claim>
Attributes
QName Type Use
id xs:ID optional
kind restriction of xs:token required
sequence xs:positiveInteger required
Source

<xs:element name="priority-claim">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="country"/>
      <xs:element ref="doc-number" minOccurs="0"/>
      <xs:element ref="date"/>
    </xs:sequence>
    <xs:attribute name="id" type="xs:ID"/>
    <xs:attribute name="sequence" type="xs:positiveInteger" use="required"/>
    <xs:attribute name="kind" use="required">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="national"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
  </xs:complexType>
</xs:element>
Element parties
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#applicantsch-patent-doc-v1-0-ige2-0_xsd.tmp#inventorsch-patent-doc-v1-0-ige2-0_xsd.tmp#agents
Properties
content complex
Used by
Model
Children agents, applicants, inventors
Instance

<parties>
  <applicants>{1,1}</applicants>
  <inventors>{0,1}</inventors>
  <agents>{0,1}</agents>
</parties>
Source

<xs:element name="parties">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="applicants"/>
      <xs:element ref="inventors" minOccurs="0"/>
      <xs:element ref="agents" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element applicants
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#applicant
Properties
content complex
Used by
Element parties
Model
Children applicant
Instance

<applicants>
  <applicant app-type="" designation="" sequence="">{1,unbounded}</applicant>
</applicants>
Source

<xs:element name="applicants">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="applicant" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

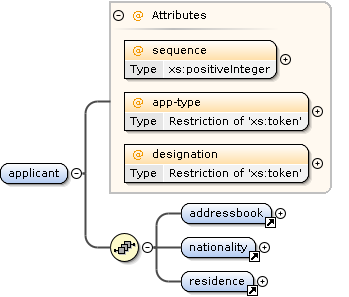

Element applicant
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#applicant_sequencech-patent-doc-v1-0-ige2-0_xsd.tmp#applicant_app-typech-patent-doc-v1-0-ige2-0_xsd.tmp#applicant_designationch-patent-doc-v1-0-ige2-0_xsd.tmp#addressbookch-patent-doc-v1-0-ige2-0_xsd.tmp#nationalitych-patent-doc-v1-0-ige2-0_xsd.tmp#residence
Properties
content complex
Used by
Element applicants
Model
Children addressbook, nationality, residence
Instance

<applicant app-type="" designation="" sequence="">
  <addressbook id="">{1,1}</addressbook>
  <nationality>{1,1}</nationality>
  <residence>{1,1}</residence>
</applicant>
Attributes
QName Type Use
app-type restriction of xs:token required
designation restriction of xs:token required
sequence xs:positiveInteger required
Source

<xs:element name="applicant">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="addressbook"/>
      <xs:element ref="nationality"/>
      <xs:element ref="residence"/>
    </xs:sequence>
    <xs:attribute name="sequence" type="xs:positiveInteger" use="required"/>
    <xs:attribute name="app-type" use="required">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="applicant"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="designation" use="required">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="as-indicated"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
  </xs:complexType>
</xs:element>

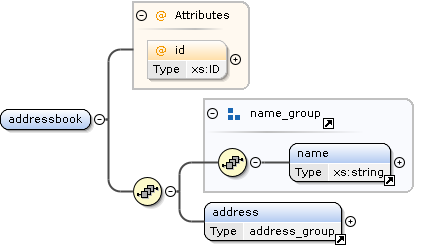

Element addressbook
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#addressbook_idch-patent-doc-v1-0-ige2-0_xsd.tmp#namech-patent-doc-v1-0-ige2-0_xsd.tmp#name_groupch-patent-doc-v1-0-ige2-0_xsd.tmp#address
Properties
content complex
Used by
Model
Children address, name
Instance

<addressbook id="">
  <name>{1,1}</name>
  <address>{1,1}</address>
</addressbook>
Attributes
QName Type Use
id xs:ID optional
Source

<xs:element name="addressbook">
  <xs:complexType>
    <xs:sequence>
      <xs:group ref="name_group"/>
      <xs:element ref="address"/>
    </xs:sequence>
    <xs:attribute name="id" type="xs:ID"/>
  </xs:complexType>
</xs:element>

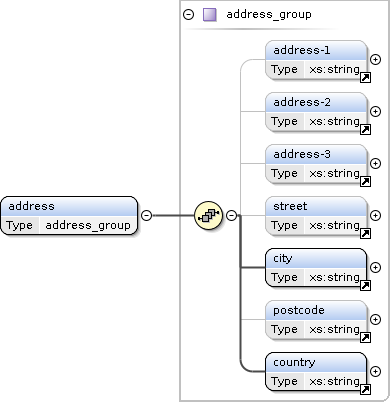

Element address
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#address-1ch-patent-doc-v1-0-ige2-0_xsd.tmp#address-2ch-patent-doc-v1-0-ige2-0_xsd.tmp#address-3ch-patent-doc-v1-0-ige2-0_xsd.tmp#streetch-patent-doc-v1-0-ige2-0_xsd.tmp#citych-patent-doc-v1-0-ige2-0_xsd.tmp#postcodech-patent-doc-v1-0-ige2-0_xsd.tmp#countrych-patent-doc-v1-0-ige2-0_xsd.tmp#address_group
Type address_group
Properties
content complex
Used by
Element addressbook
Model
Children address-1, address-2, address-3, city, country, postcode, street
Instance

<address>
  <address-1>{0,1}</address-1>
  <address-2>{0,1}</address-2>
  <address-3>{0,1}</address-3>
  <street>{0,1}</street>
  <city>{1,1}</city>
  <postcode>{0,1}</postcode>
  <country>{1,1}</country>
</address>
Source

<xs:element name="address" type="address_group"/>
Element nationality
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#country
Properties
content complex
Used by
Element applicant
Model
Children country
Instance

<nationality>
  <country>{1,1}</country>
</nationality>
Source

<xs:element name="nationality">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="country"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element residence
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#country
Properties
content complex
Used by
Element applicant
Model
Children country
Instance

<residence>
  <country>{1,1}</country>
</residence>
Source

<xs:element name="residence">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="country"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element inventors
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#inventor
Properties
content complex
Used by
Element parties
Model
Children inventor
Instance

<inventors>
  <inventor sequence="">{1,unbounded}</inventor>
</inventors>
Source

<xs:element name="inventors">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="inventor" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

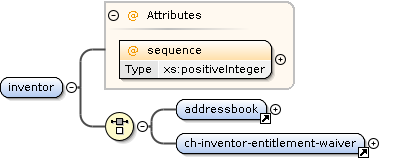

Element inventor
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#inventor_sequencech-patent-doc-v1-0-ige2-0_xsd.tmp#addressbookch-patent-doc-v1-0-ige2-0_xsd.tmp#ch-inventor-entitlement-waiver
Properties
content complex
Used by
Element inventors
Model
Children addressbook, ch-inventor-entitlement-waiver
Instance

<inventor sequence="">
  <addressbook id="">{1,1}</addressbook>
  <ch-inventor-entitlement-waiver waiver-type="">{1,1}</ch-inventor-entitlement-waiver>
</inventor>
Attributes
QName Type Use
sequence xs:positiveInteger required
Source

<xs:element name="inventor">
  <xs:complexType>
    <xs:choice>
      <xs:element ref="addressbook"/>
      <xs:element ref="ch-inventor-entitlement-waiver"/>
    </xs:choice>
    <xs:attribute name="sequence" type="xs:positiveInteger" use="required"/>
  </xs:complexType>
</xs:element>
Element ch-inventor-entitlement-waiver
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#ch-inventor-entitlement-waiver_waiver-type
Properties
content complex
mixed true
Used by
Element inventor
Model
Attributes
QName Type Use
waiver-type restriction of xs:token required
Source

<xs:element name="ch-inventor-entitlement-waiver">
  <xs:complexType mixed="true">
    <xs:attribute name="waiver-type" use="required">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="one"/>
          <xs:enumeration value="all"/>
          <xs:enumeration value="the-other"/>
          <xs:enumeration value="all-others"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
  </xs:complexType>
</xs:element>
Element agents
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#agent
Properties
content complex
Used by
Element parties
Model
Children agent
Instance

<agents>
  <agent rep-type="" sequence="">{1,unbounded}</agent>
</agents>
Source

<xs:element name="agents">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="agent" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

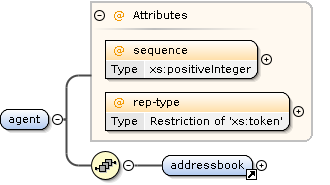

Element agent
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#agent_sequencech-patent-doc-v1-0-ige2-0_xsd.tmp#agent_rep-typech-patent-doc-v1-0-ige2-0_xsd.tmp#addressbook
Properties
content complex
Used by
Element agents
Model
Children addressbook
Instance

<agent rep-type="" sequence="">
  <addressbook id="">{1,1}</addressbook>
</agent>
Attributes
QName Type Use
rep-type restriction of xs:token required
sequence xs:positiveInteger required
Source

<xs:element name="agent">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="addressbook"/>
    </xs:sequence>
    <xs:attribute name="sequence" type="xs:positiveInteger" use="required"/>
    <xs:attribute name="rep-type" use="required">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="agent"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
  </xs:complexType>
</xs:element>

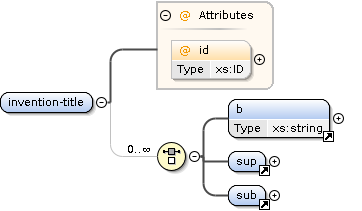

Element invention-title
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#invention-title_idch-patent-doc-v1-0-ige2-0_xsd.tmp#bch-patent-doc-v1-0-ige2-0_xsd.tmp#supch-patent-doc-v1-0-ige2-0_xsd.tmp#sub
Properties
content complex
mixed true
Used by
Model
b | sup | sub
Children b, sub, sup
Instance

<invention-title id="">
  <b>{1,1}</b>
  <sup>{1,1}</sup>
  <sub>{1,1}</sub>
</invention-title>
Attributes
QName Type Use
id xs:ID optional
Source

<xs:element name="invention-title">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="b"/>
      <xs:element ref="sup"/>
      <xs:element ref="sub"/>
    </xs:choice>
    <xs:attribute name="id" type="xs:ID"/>
  </xs:complexType>
</xs:element>
Element assignees
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#assignee
Properties
content complex
Used by
Model
Children assignee
Instance

<assignees>
  <assignee>{1,unbounded}</assignee>
</assignees>
Source

<xs:element name="assignees">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="assignee" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element assignee
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#addressbook
Properties
content complex
Used by
Element assignees
Model
Children addressbook
Instance

<assignee>
  <addressbook id="">{1,1}</addressbook>
</assignee>
Source

<xs:element name="assignee">
  <xs:complexType>
    <xs:choice>
      <xs:element ref="addressbook"/>
    </xs:choice>
  </xs:complexType>
</xs:element>
Element dates-of-public-availability
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#ch-partial-invalidation-of-patent
Properties
content complex
Used by
Model
Children ch-partial-invalidation-of-patent
Instance

<dates-of-public-availability>
  <ch-partial-invalidation-of-patent>{1,1}</ch-partial-invalidation-of-patent>
</dates-of-public-availability>
Source

<xs:element name="dates-of-public-availability">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="ch-partial-invalidation-of-patent"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element ch-partial-invalidation-of-patent
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#document-id
Properties
content complex
Used by
Model
Children document-id
Instance

<ch-partial-invalidation-of-patent>
  <document-id>{1,1}</document-id>
</ch-partial-invalidation-of-patent>
Source

<xs:element name="ch-partial-invalidation-of-patent">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="document-id"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element dates-rights-effective
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#NO_NAMESPACE_date-entering-into-forcech-patent-doc-v1-0-ige2-0_xsd.tmp#date-entering-into-force
Type date-entering-into-force
Properties
content complex
Used by
Model
Children date-entering-into-force
Instance

<dates-rights-effective>
  <date-entering-into-force>{1,1}</date-entering-into-force>
</dates-rights-effective>
Source

<xs:element name="dates-rights-effective" type="date-entering-into-force"/>
Element date-entering-into-force
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#date
Properties
content complex
Used by
Model
Children date
Instance

<date-entering-into-force>
  <date>{1,1}</date>
</date-entering-into-force>
Source

<xs:element name="date-entering-into-force">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="date"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element related-documents
Namespace No namespace
Diagram
Type division
Properties
Used by
Model
Children division, related-publication
Instance
Source
Element division
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#NO_NAMESPACE_relationch-patent-doc-v1-0-ige2-0_xsd.tmp#relation
Type relation
Properties
content complex
Used by
Complex Type division
Model
Children relation
Instance

<division>
  <relation>{1,1}</relation>
</division>
Source

<xs:element name="division" type="relation"/>
Element relation
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#parent-docch-patent-doc-v1-0-ige2-0_xsd.tmp#child-doc
Properties
content complex
Used by
Complex Type relation
Model
Children child-doc, parent-doc
Instance

<relation>
  <parent-doc>{1,1}</parent-doc>
  <child-doc>{0,1}</child-doc>
</relation>
Source

<xs:element name="relation">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="parent-doc"/>
      <xs:element ref="child-doc" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element parent-doc
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#document-idch-patent-doc-v1-0-ige2-0_xsd.tmp#NO_NAMESPACE_document-id
Type document-id
Properties
content complex
Used by
Element relation
Model
Children document-id
Instance

<parent-doc>
  <document-id>{1,1}</document-id>
</parent-doc>
Source

<xs:element name="parent-doc" type="document-id"/>
Element child-doc
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#document-idch-patent-doc-v1-0-ige2-0_xsd.tmp#NO_NAMESPACE_document-id
Type document-id
Properties
content complex
Used by
Element relation
Model
Children document-id
Instance

<child-doc>
  <document-id>{1,1}</document-id>
</child-doc>
Source

<xs:element name="child-doc" type="document-id"/>
Element related-publication
Namespace No namespace
Diagram
Properties
Used by
Model
Children document-id
Instance
Source
Element st50-republication
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#correction-notice
Properties
content complex
Used by
Model
Children correction-notice
Instance

<st50-republication>
  <correction-notice>{0,1}</correction-notice>
</st50-republication>
Source

<xs:element name="st50-republication">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="correction-notice" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element correction-notice
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#datech-patent-doc-v1-0-ige2-0_xsd.tmp#gazette-reference
Properties
content complex
Used by
Model
Children date, gazette-reference
Instance

<correction-notice>
  <date>{1,1}</date>
  <gazette-reference id="">{1,1}</gazette-reference>
</correction-notice>
Source

<xs:element name="correction-notice">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="date"/>
      <xs:element ref="gazette-reference"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

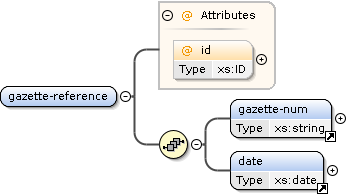

Element gazette-reference
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#gazette-reference_idch-patent-doc-v1-0-ige2-0_xsd.tmp#gazette-numch-patent-doc-v1-0-ige2-0_xsd.tmp#date
Properties
content complex
Used by
Model
Children date, gazette-num
Instance

<gazette-reference id="">
  <gazette-num>{1,1}</gazette-num>
  <date>{1,1}</date>
</gazette-reference>
Attributes
QName Type Use
id xs:ID optional
Source

<xs:element name="gazette-reference">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="gazette-num"/>
      <xs:element ref="date"/>
    </xs:sequence>
    <xs:attribute name="id" type="xs:ID"/>
  </xs:complexType>
</xs:element>
Element gazette-num
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content simple
Used by
Source

<xs:element name="gazette-num" type="xs:string"/>
Element pct-or-regional-filing-data
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#document-idch-patent-doc-v1-0-ige2-0_xsd.tmp#NO_NAMESPACE_document-id
Type document-id
Properties
content complex
Used by
Model
Children document-id
Instance

<pct-or-regional-filing-data>
  <document-id>{1,1}</document-id>
</pct-or-regional-filing-data>
Source

<xs:element name="pct-or-regional-filing-data" type="document-id"/>
Element pct-or-regional-publishing-data
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#document-idch-patent-doc-v1-0-ige2-0_xsd.tmp#NO_NAMESPACE_document-id
Type document-id
Properties
content complex
Used by
Model
Children document-id
Instance

<pct-or-regional-publishing-data>
  <document-id>{1,1}</document-id>
</pct-or-regional-publishing-data>
Source

<xs:element name="pct-or-regional-publishing-data" type="document-id"/>
Element date-application-withdrawn-by-applicant
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#date
Properties
content complex
Used by
Model
Children date
Instance

<date-application-withdrawn-by-applicant>
  <date>{1,1}</date>
</date-application-withdrawn-by-applicant>
Source

<xs:element name="date-application-withdrawn-by-applicant">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="date"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element text
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content simple
Used by
Element bibliographic-data
Source

<xs:element name="text" type="xs:string"/>
Element abstract
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#abstract_idch-patent-doc-v1-0-ige2-0_xsd.tmp#p
Properties
content complex
Used by
Model
Children p
Instance

<abstract id="">
  <p id="" num="">{1,unbounded}</p>
</abstract>
Attributes
QName Type Use
id xs:ID optional
Source

<xs:element name="abstract">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="p" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="id" type="xs:ID"/>
  </xs:complexType>
</xs:element>

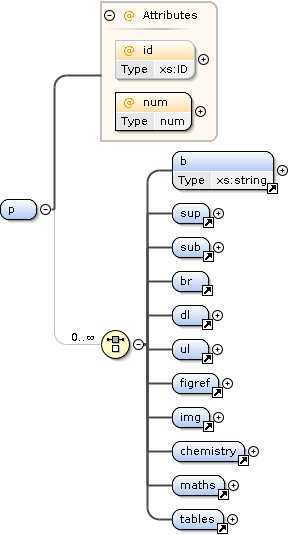

Element p
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#p_idch-patent-doc-v1-0-ige2-0_xsd.tmp#p_numch-patent-doc-v1-0-ige2-0_xsd.tmp#bch-patent-doc-v1-0-ige2-0_xsd.tmp#supch-patent-doc-v1-0-ige2-0_xsd.tmp#subch-patent-doc-v1-0-ige2-0_xsd.tmp#brch-patent-doc-v1-0-ige2-0_xsd.tmp#dlch-patent-doc-v1-0-ige2-0_xsd.tmp#ulch-patent-doc-v1-0-ige2-0_xsd.tmp#figrefch-patent-doc-v1-0-ige2-0_xsd.tmp#imgch-patent-doc-v1-0-ige2-0_xsd.tmp#chemistrych-patent-doc-v1-0-ige2-0_xsd.tmp#mathsch-patent-doc-v1-0-ige2-0_xsd.tmp#tables
Properties
content complex
mixed true
Used by
Elements abstract, description
Model
b | sup | sub | br | dl | ul | figref | img | chemistry | maths | tables
Children b, br, chemistry, dl, figref, img, maths, sub, sup, tables, ul
Instance

<p id="" num="">
  <b>{1,1}</b>
  <sup>{1,1}</sup>
  <sub>{1,1}</sub>
  <br>{1,1}</br>
  <dl id="" tsize="">{1,1}</dl>
  <ul id="" list-style="dash">{1,1}</ul>
  <figref idref="" num="">{1,1}</figref>
  <img alt="" file="" he="" id="" img-content="drawing" img-format="" inline="no" orientation="portrait" wi="">{1,1}</img>
  <chemistry id="" num="">{1,1}</chemistry>
  <maths id="" num="">{1,1}</maths>
  <tables id="" num="">{1,1}</tables>
</p>
Attributes
QName Type Use
id xs:ID optional
num num required
Source

<xs:element name="p">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="b"/>
      <xs:element ref="sup"/>
      <xs:element ref="sub"/>
      <xs:element ref="br"/>
      <xs:element ref="dl"/>
      <xs:element ref="ul"/>
      <xs:element ref="figref"/>
      <xs:element ref="img"/>
      <xs:element ref="chemistry"/>
      <xs:element ref="maths"/>
      <xs:element ref="tables"/>
    </xs:choice>
    <xs:attribute name="id" type="xs:ID"/>
    <xs:attribute name="num" type="num" use="required"/>
  </xs:complexType>
</xs:element>
Element tables
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#tables_idch-patent-doc-v1-0-ige2-0_xsd.tmp#tables_numch-patent-doc-v1-0-ige2-0_xsd.tmp#imgch-patent-doc-v1-0-ige2-0_xsd.tmp#table
Properties
content complex
Used by
Elements claim-text, p
Model
Children img, table
Instance

<tables id="" num="">
  <img alt="" file="" he="" id="" img-content="drawing" img-format="" inline="no" orientation="portrait" wi="">{1,1}</img>
  <table colsep="" frame="" pgwide="" rowsep="">{1,1}</table>
</tables>
Attributes
QName Type Use
id xs:ID optional
num num required
Source

<xs:element name="tables">
  <xs:complexType>
    <xs:choice>
      <xs:element ref="img"/>
      <xs:element ref="table"/>
    </xs:choice>
    <xs:attribute name="id" type="xs:ID"/>
    <xs:attribute name="num" type="num" use="required"/>
  </xs:complexType>
</xs:element>

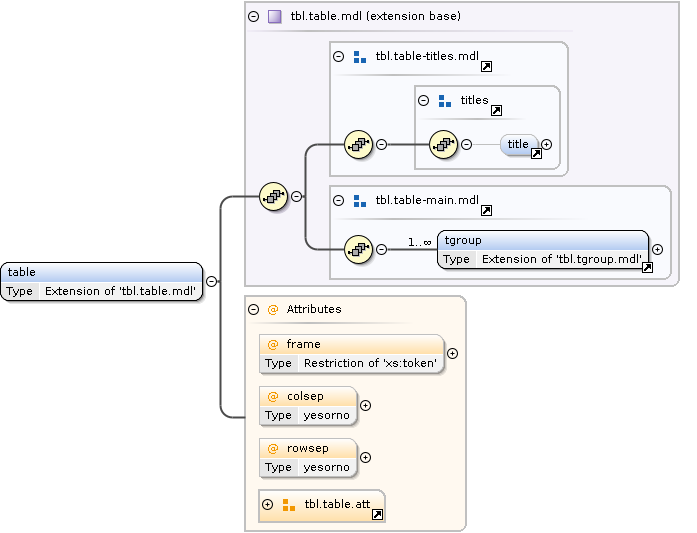

Element table
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#titlech-patent-doc-v1-0-ige2-0_xsd.tmp#titlesch-patent-doc-v1-0-ige2-0_xsd.tmp#tbl.table-titles.mdlch-patent-doc-v1-0-ige2-0_xsd.tmp#tgroupch-patent-doc-v1-0-ige2-0_xsd.tmp#tbl.table-main.mdlch-patent-doc-v1-0-ige2-0_xsd.tmp#tbl.table.mdlch-patent-doc-v1-0-ige2-0_xsd.tmp#table_framech-patent-doc-v1-0-ige2-0_xsd.tmp#table_colsepch-patent-doc-v1-0-ige2-0_xsd.tmp#table_rowsepch-patent-doc-v1-0-ige2-0_xsd.tmp#tbl.table.att
Type extension of tbl.table.mdl
Type hierarchy
Properties
content complex
Used by
Element tables
Model
Children tgroup, title
Instance

<table colsep="" frame="" pgwide="" rowsep="">
  <title>{0,1}</title>
  <tgroup align="" cols="" colsep="" rowsep="">{1,unbounded}</tgroup>
</table>
Attributes
QName Type Use
colsep yesorno optional
frame restriction of xs:token optional
pgwide yesorno optional
rowsep yesorno optional
Source

<xs:element name="table">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="tbl.table.mdl">
        <xs:attribute name="frame">
          <xs:simpleType>
            <xs:restriction base="xs:token">
              <xs:enumeration value="top"/>
              <xs:enumeration value="bottom"/>
              <xs:enumeration value="topbot"/>
              <xs:enumeration value="all"/>
              <xs:enumeration value="sides"/>
              <xs:enumeration value="none"/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="colsep" type="yesorno"/>
        <xs:attribute name="rowsep" type="yesorno"/>
        <xs:attributeGroup ref="tbl.table.att"/>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
Element tgroup
Namespace No namespace

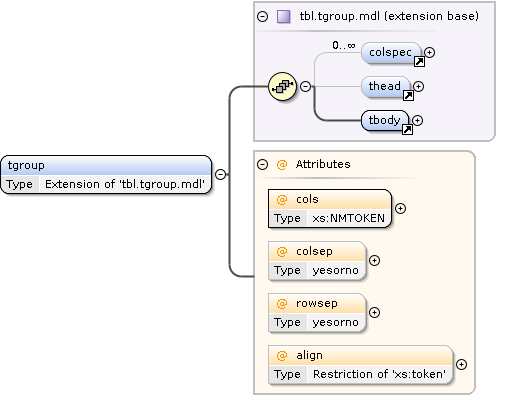

Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#colspecch-patent-doc-v1-0-ige2-0_xsd.tmp#theadch-patent-doc-v1-0-ige2-0_xsd.tmp#tbodych-patent-doc-v1-0-ige2-0_xsd.tmp#tbl.tgroup.mdlch-patent-doc-v1-0-ige2-0_xsd.tmp#tgroup_colsch-patent-doc-v1-0-ige2-0_xsd.tmp#tgroup_colsepch-patent-doc-v1-0-ige2-0_xsd.tmp#tgroup_rowsepch-patent-doc-v1-0-ige2-0_xsd.tmp#tgroup_align
Type extension of tbl.tgroup.mdl
Type hierarchy
Properties
content complex
Used by
Element Group tbl.table-main.mdl
Model
Children colspec, tbody, thead
Instance

<tgroup align="" cols="" colsep="" rowsep="">
  <colspec align="" char="" charoff="" colname="" colnum="" colsep="" colwidth="" rowsep="">{0,unbounded}</colspec>
  <thead valign="">{0,1}</thead>
  <tbody valign="">{1,1}</tbody>
</tgroup>
Attributes
QName Type Use
align restriction of xs:token optional
cols xs:NMTOKEN required
colsep yesorno optional
rowsep yesorno optional
Source

<xs:element name="tgroup">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="tbl.tgroup.mdl">
        <xs:attribute name="cols" type="xs:NMTOKEN" use="required"/>
        <xs:attribute name="colsep" type="yesorno"/>
        <xs:attribute name="rowsep" type="yesorno"/>
        <xs:attribute name="align">
          <xs:simpleType>
            <xs:restriction base="xs:token">
              <xs:enumeration value="left"/>
              <xs:enumeration value="right"/>
              <xs:enumeration value="center"/>
              <xs:enumeration value="justify"/>
              <xs:enumeration value="char"/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

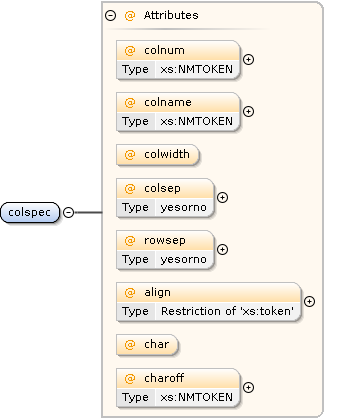

Element colspec
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#colspec_colnumch-patent-doc-v1-0-ige2-0_xsd.tmp#colspec_colnamech-patent-doc-v1-0-ige2-0_xsd.tmp#colspec_colwidthch-patent-doc-v1-0-ige2-0_xsd.tmp#colspec_colsepch-patent-doc-v1-0-ige2-0_xsd.tmp#colspec_rowsepch-patent-doc-v1-0-ige2-0_xsd.tmp#colspec_alignch-patent-doc-v1-0-ige2-0_xsd.tmp#colspec_charch-patent-doc-v1-0-ige2-0_xsd.tmp#colspec_charoff
Properties
content complex
Used by
Complex Type tbl.tgroup.mdl
Element tgroup
Attributes
QName Type Use
align restriction of xs:token optional
char optional
charoff xs:NMTOKEN optional
colname xs:NMTOKEN optional
colnum xs:NMTOKEN optional
colsep yesorno optional
colwidth optional
rowsep yesorno optional
Source

<xs:element name="colspec">
  <xs:complexType>
    <xs:attribute name="colnum" type="xs:NMTOKEN"/>
    <xs:attribute name="colname" type="xs:NMTOKEN"/>
    <xs:attribute name="colwidth"/>
    <xs:attribute name="colsep" type="yesorno"/>
    <xs:attribute name="rowsep" type="yesorno"/>
    <xs:attribute name="align">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="left"/>
          <xs:enumeration value="right"/>
          <xs:enumeration value="center"/>
          <xs:enumeration value="justify"/>
          <xs:enumeration value="char"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="char"/>
    <xs:attribute name="charoff" type="xs:NMTOKEN"/>
  </xs:complexType>
</xs:element>

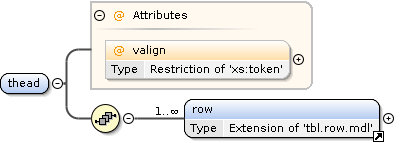

Element thead
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#thead_valignch-patent-doc-v1-0-ige2-0_xsd.tmp#row
Properties
content complex
Used by
Complex Type tbl.tgroup.mdl
Element tgroup
Model
Children row
Instance

<thead valign="">
  <row rowsep="" valign="">{1,unbounded}</row>
</thead>
Attributes
QName Type Use
valign restriction of xs:token optional
Source

<xs:element name="thead">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="row" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="valign">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="top"/>
          <xs:enumeration value="middle"/>
          <xs:enumeration value="bottom"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
  </xs:complexType>
</xs:element>
Element row
Namespace No namespace

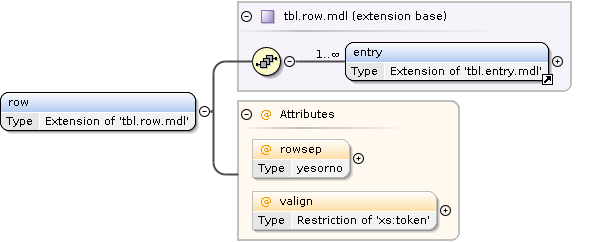

Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#entrych-patent-doc-v1-0-ige2-0_xsd.tmp#tbl.row.mdlch-patent-doc-v1-0-ige2-0_xsd.tmp#row_rowsepch-patent-doc-v1-0-ige2-0_xsd.tmp#row_valign
Type extension of tbl.row.mdl
Type hierarchy
Properties
content complex
Used by
Elements tbody, thead
Model
Children entry
Instance

<row rowsep="" valign="">
  <entry align="" char="" charoff="" colname="" colsep="" morerows="" nameend="" namest="" rowsep="" valign="">{1,unbounded}</entry>
</row>
Attributes
QName Type Use
rowsep yesorno optional
valign restriction of xs:token optional
Source

<xs:element name="row">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="tbl.row.mdl">
        <xs:attribute name="rowsep" type="yesorno"/>
        <xs:attribute name="valign">
          <xs:simpleType>
            <xs:restriction base="xs:token">
              <xs:enumeration value="top"/>
              <xs:enumeration value="middle"/>
              <xs:enumeration value="bottom"/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
Element entry
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#bch-patent-doc-v1-0-ige2-0_xsd.tmp#supch-patent-doc-v1-0-ige2-0_xsd.tmp#subch-patent-doc-v1-0-ige2-0_xsd.tmp#brch-patent-doc-v1-0-ige2-0_xsd.tmp#imgch-patent-doc-v1-0-ige2-0_xsd.tmp#dlch-patent-doc-v1-0-ige2-0_xsd.tmp#ulch-patent-doc-v1-0-ige2-0_xsd.tmp#chemistrych-patent-doc-v1-0-ige2-0_xsd.tmp#mathsch-patent-doc-v1-0-ige2-0_xsd.tmp#tbl.entry.mdlch-patent-doc-v1-0-ige2-0_xsd.tmp#entry_colnamech-patent-doc-v1-0-ige2-0_xsd.tmp#entry_namestch-patent-doc-v1-0-ige2-0_xsd.tmp#entry_nameendch-patent-doc-v1-0-ige2-0_xsd.tmp#entry_morerowsch-patent-doc-v1-0-ige2-0_xsd.tmp#entry_colsepch-patent-doc-v1-0-ige2-0_xsd.tmp#entry_rowsepch-patent-doc-v1-0-ige2-0_xsd.tmp#entry_alignch-patent-doc-v1-0-ige2-0_xsd.tmp#entry_charch-patent-doc-v1-0-ige2-0_xsd.tmp#entry_charoffch-patent-doc-v1-0-ige2-0_xsd.tmp#entry_valign
Type extension of tbl.entry.mdl
Type hierarchy
Properties
content complex
Used by
Complex Type tbl.row.mdl
Element row
Model
b | sup | sub | br | img | dl | ul | chemistry | maths
Children b, br, chemistry, dl, img, maths, sub, sup, ul
Instance

<entry align="" char="" charoff="" colname="" colsep="" morerows="" nameend="" namest="" rowsep="" valign="">
  <b>{1,1}</b>
  <sup>{1,1}</sup>
  <sub>{1,1}</sub>
  <br>{1,1}</br>
  <img alt="" file="" he="" id="" img-content="drawing" img-format="" inline="no" orientation="portrait" wi="">{1,1}</img>
  <dl id="" tsize="">{1,1}</dl>
  <ul id="" list-style="dash">{1,1}</ul>
  <chemistry id="" num="">{1,1}</chemistry>
  <maths id="" num="">{1,1}</maths>
</entry>
Attributes
QName Type Use
align restriction of xs:token optional
char optional
charoff xs:NMTOKEN optional
colname xs:NMTOKEN optional
colsep yesorno optional
morerows xs:NMTOKEN optional
nameend xs:NMTOKEN optional
namest xs:NMTOKEN optional
rowsep yesorno optional
valign restriction of xs:token optional
Source

<xs:element name="entry">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="tbl.entry.mdl">
        <xs:attribute name="colname" type="xs:NMTOKEN"/>
        <xs:attribute name="namest" type="xs:NMTOKEN"/>
        <xs:attribute name="nameend" type="xs:NMTOKEN"/>
        <xs:attribute name="morerows" type="xs:NMTOKEN"/>
        <xs:attribute name="colsep" type="yesorno"/>
        <xs:attribute name="rowsep" type="yesorno"/>
        <xs:attribute name="align">
          <xs:simpleType>
            <xs:restriction base="xs:token">
              <xs:enumeration value="left"/>
              <xs:enumeration value="right"/>
              <xs:enumeration value="center"/>
              <xs:enumeration value="justify"/>
              <xs:enumeration value="char"/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="char"/>
        <xs:attribute name="charoff" type="xs:NMTOKEN"/>
        <xs:attribute name="valign">
          <xs:simpleType>
            <xs:restriction base="xs:token">
              <xs:enumeration value="top"/>
              <xs:enumeration value="middle"/>
              <xs:enumeration value="bottom"/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
Element tbody
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#tbody_valignch-patent-doc-v1-0-ige2-0_xsd.tmp#row
Properties
content complex
Used by
Complex Type tbl.tgroup.mdl
Element tgroup
Model
Children row
Instance

<tbody valign="">
  <row rowsep="" valign="">{1,unbounded}</row>
</tbody>
Attributes
QName Type Use
valign restriction of xs:token optional
Source

<xs:element name="tbody">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="row" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="valign">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="top"/>
          <xs:enumeration value="middle"/>
          <xs:enumeration value="bottom"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
  </xs:complexType>
</xs:element>

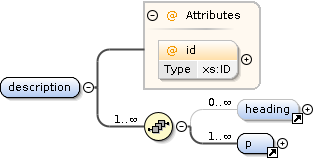

Element description
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#description_idch-patent-doc-v1-0-ige2-0_xsd.tmp#headingch-patent-doc-v1-0-ige2-0_xsd.tmp#p
Properties
content complex
Used by
Model
Children heading, p
Instance

<description id="">
  <heading id="">{0,unbounded}</heading>
  <p id="" num="">{1,unbounded}</p>
</description>
Attributes
QName Type Use
id xs:ID optional
Source

<xs:element name="description">
  <xs:complexType>
    <xs:sequence maxOccurs="unbounded">
      <xs:element ref="heading" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="p" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="id" type="xs:ID"/>
  </xs:complexType>
</xs:element>

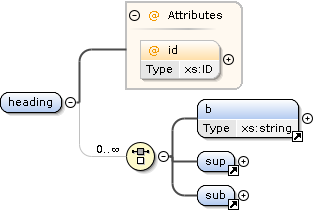

Element heading
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#heading_idch-patent-doc-v1-0-ige2-0_xsd.tmp#bch-patent-doc-v1-0-ige2-0_xsd.tmp#supch-patent-doc-v1-0-ige2-0_xsd.tmp#sub
Properties
content complex
mixed true
Used by
Element description
Model
b | sup | sub
Children b, sub, sup
Instance

<heading id="">
  <b>{1,1}</b>
  <sup>{1,1}</sup>
  <sub>{1,1}</sub>
</heading>
Attributes
QName Type Use
id xs:ID optional
Source

<xs:element name="heading">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="b"/>
      <xs:element ref="sup"/>
      <xs:element ref="sub"/>
    </xs:choice>
    <xs:attribute name="id" type="xs:ID"/>
  </xs:complexType>
</xs:element>
Element claims
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#claims_idch-patent-doc-v1-0-ige2-0_xsd.tmp#claim
Properties
content complex
Used by
Model
Children claim
Instance

<claims id="">
  <claim id="" num="">{1,unbounded}</claim>
</claims>
Attributes
QName Type Use
id xs:ID optional
Source

<xs:element name="claims">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="claim" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="id" type="xs:ID"/>
  </xs:complexType>
</xs:element>
Element claim
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#claim_idch-patent-doc-v1-0-ige2-0_xsd.tmp#claim_numch-patent-doc-v1-0-ige2-0_xsd.tmp#claim-text
Properties
content complex
Used by
Element claims
Model
Children claim-text
Instance

<claim id="" num="">
  <claim-text>{1,unbounded}</claim-text>
</claim>
Attributes
QName Type Use
id xs:ID optional
num num required
Source

<xs:element name="claim">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="claim-text" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="id" type="xs:ID"/>
    <xs:attribute name="num" type="num" use="required"/>
  </xs:complexType>
</xs:element>

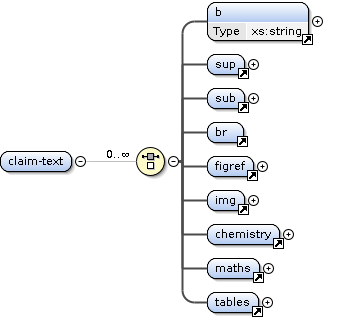

Element claim-text
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#bch-patent-doc-v1-0-ige2-0_xsd.tmp#supch-patent-doc-v1-0-ige2-0_xsd.tmp#subch-patent-doc-v1-0-ige2-0_xsd.tmp#brch-patent-doc-v1-0-ige2-0_xsd.tmp#figrefch-patent-doc-v1-0-ige2-0_xsd.tmp#imgch-patent-doc-v1-0-ige2-0_xsd.tmp#chemistrych-patent-doc-v1-0-ige2-0_xsd.tmp#mathsch-patent-doc-v1-0-ige2-0_xsd.tmp#tables
Properties
content complex
mixed true
Used by
Element claim
Model
b | sup | sub | br | figref | img | chemistry | maths | tables
Children b, br, chemistry, figref, img, maths, sub, sup, tables
Instance

<claim-text>
  <b>{1,1}</b>
  <sup>{1,1}</sup>
  <sub>{1,1}</sub>
  <br>{1,1}</br>
  <figref idref="" num="">{1,1}</figref>
  <img alt="" file="" he="" id="" img-content="drawing" img-format="" inline="no" orientation="portrait" wi="">{1,1}</img>
  <chemistry id="" num="">{1,1}</chemistry>
  <maths id="" num="">{1,1}</maths>
  <tables id="" num="">{1,1}</tables>
</claim-text>
Source

<xs:element name="claim-text">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="b"/>
      <xs:element ref="sup"/>
      <xs:element ref="sub"/>
      <xs:element ref="br"/>
      <xs:element ref="figref"/>
      <xs:element ref="img"/>
      <xs:element ref="chemistry"/>
      <xs:element ref="maths"/>
      <xs:element ref="tables"/>
    </xs:choice>
  </xs:complexType>
</xs:element>
Element drawings
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#drawings_idch-patent-doc-v1-0-ige2-0_xsd.tmp#figure
Properties
content complex
Used by
Model
Children figure
Instance

<drawings id="">
  <figure id="" num="">{1,unbounded}</figure>
</drawings>
Attributes
QName Type Use
id xs:ID optional
Source

<xs:element name="drawings">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="figure" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="id" type="xs:ID"/>
  </xs:complexType>
</xs:element>
Element figure
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#figure_idch-patent-doc-v1-0-ige2-0_xsd.tmp#figure_numch-patent-doc-v1-0-ige2-0_xsd.tmp#img
Properties
content complex
Used by
Element drawings
Model
Children img
Instance

<figure id="" num="">
  <img alt="" file="" he="" id="" img-content="drawing" img-format="" inline="no" orientation="portrait" wi="">{1,1}</img>
</figure>
Attributes
QName Type Use
id figid required
num num required
Source

<xs:element name="figure">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="img"/>
    </xs:sequence>
    <xs:attribute name="id" type="figid" use="required"/>
    <xs:attribute name="num" type="num" use="required"/>
  </xs:complexType>
</xs:element>
Complex Type address_group
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#address-1ch-patent-doc-v1-0-ige2-0_xsd.tmp#address-2ch-patent-doc-v1-0-ige2-0_xsd.tmp#address-3ch-patent-doc-v1-0-ige2-0_xsd.tmp#streetch-patent-doc-v1-0-ige2-0_xsd.tmp#citych-patent-doc-v1-0-ige2-0_xsd.tmp#postcodech-patent-doc-v1-0-ige2-0_xsd.tmp#country
Used by
Element address
Model
Children address-1, address-2, address-3, city, country, postcode, street
Source

<xs:complexType name="address_group">
  <xs:sequence>
    <xs:element ref="address-1" minOccurs="0"/>
    <xs:element ref="address-2" minOccurs="0"/>
    <xs:element ref="address-3" minOccurs="0"/>
    <xs:element ref="street" minOccurs="0"/>
    <xs:element ref="city"/>
    <xs:element ref="postcode" minOccurs="0"/>
    <xs:element ref="country"/>
  </xs:sequence>
</xs:complexType>
Complex Type tbl.entry.mdl
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#bch-patent-doc-v1-0-ige2-0_xsd.tmp#supch-patent-doc-v1-0-ige2-0_xsd.tmp#subch-patent-doc-v1-0-ige2-0_xsd.tmp#brch-patent-doc-v1-0-ige2-0_xsd.tmp#imgch-patent-doc-v1-0-ige2-0_xsd.tmp#dlch-patent-doc-v1-0-ige2-0_xsd.tmp#ulch-patent-doc-v1-0-ige2-0_xsd.tmp#chemistrych-patent-doc-v1-0-ige2-0_xsd.tmp#maths
Properties
mixed true
Used by
Element entry
Model
b | sup | sub | br | img | dl | ul | chemistry | maths
Children b, br, chemistry, dl, img, maths, sub, sup, ul
Source

<xs:complexType name="tbl.entry.mdl" mixed="true">
  <xs:choice minOccurs="0" maxOccurs="unbounded">
    <xs:element ref="b"/>
    <xs:element ref="sup"/>
    <xs:element ref="sub"/>
    <xs:element ref="br"/>
    <xs:element ref="img"/>
    <xs:element ref="dl"/>
    <xs:element ref="ul"/>
    <xs:element ref="chemistry"/>
    <xs:element ref="maths"/>
  </xs:choice>
</xs:complexType>
Simple Type imgid
Namespace No namespace
Diagram
Diagram
Type restriction of xs:ID
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & (i(a|af|f|b)[0-9]{4})
Used by
Attribute img/@id
Source

<xs:simpleType name="imgid">
  <xs:restriction base="xs:ID">
    <xs:pattern value="i(a|af|f|b)[0-9]{4}"/>
  </xs:restriction>
</xs:simpleType>
Simple Type dez_1_300_2f
Namespace No namespace
Diagram
Diagram
Type restriction of xs:decimal
Facets
fractionDigits 2
maxInclusive 300
minInclusive 1
Used by
Attributes dl/@tsize, img/@he, img/@wi
Source

<xs:simpleType name="dez_1_300_2f">
  <xs:restriction base="xs:decimal">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="300"/>
    <xs:fractionDigits value="2"/>
  </xs:restriction>
</xs:simpleType>
Simple Type num
Namespace No namespace
Diagram
Diagram
Type restriction of xs:integer
Facets
maxInclusive 9999
minInclusive 1
Used by
Source

<xs:simpleType name="num">
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="9999"/>
  </xs:restriction>
</xs:simpleType>
Simple Type chemistryid
Namespace No namespace
Diagram
Diagram
Type restriction of xs:ID
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & ((chem|chema)[0-9]{4})
Used by
Attribute chemistry/@id
Source

<xs:simpleType name="chemistryid">
  <xs:restriction base="xs:ID">
    <xs:pattern value="(chem|chema)[0-9]{4}"/>
  </xs:restriction>
</xs:simpleType>
Simple Type mathsid
Namespace No namespace
Diagram
Diagram
Type restriction of xs:ID
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & ((math|matha)[0-9]{4})
Used by
Attribute maths/@id
Source

<xs:simpleType name="mathsid">
  <xs:restriction base="xs:ID">
    <xs:pattern value="(math|matha)[0-9]{4}"/>
  </xs:restriction>
</xs:simpleType>
Simple Type lang
Namespace No namespace
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration de
enumeration fr
enumeration it
Used by
Source

<xs:simpleType name="lang">
  <xs:restriction base="xs:string">
    <xs:enumeration value="de"/>
    <xs:enumeration value="fr"/>
    <xs:enumeration value="it"/>
  </xs:restriction>
</xs:simpleType>
Simple Type figid
Namespace No namespace
Diagram
Diagram
Type restriction of xs:ID
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & (f[0-9]{4})
Used by
Attribute figure/@id
Source

<xs:simpleType name="figid">
  <xs:restriction base="xs:ID">
    <xs:pattern value="f[0-9]{4}"/>
  </xs:restriction>
</xs:simpleType>
Simple Type kind
Namespace No namespace
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration A5
enumeration A8
enumeration A9
enumeration B8
enumeration B9
enumeration C1
enumeration C2
enumeration C3
enumeration C9
enumeration H1
enumeration H2
enumeration H3
enumeration H9
Used by
Element kind
Source

<xs:simpleType name="kind">
  <xs:restriction base="xs:string">
    <xs:enumeration value="A5"/>
    <xs:enumeration value="A8"/>
    <xs:enumeration value="A9"/>
    <xs:enumeration value="B8"/>
    <xs:enumeration value="B9"/>
    <xs:enumeration value="C1"/>
    <xs:enumeration value="C2"/>
    <xs:enumeration value="C3"/>
    <xs:enumeration value="C9"/>
    <xs:enumeration value="H1"/>
    <xs:enumeration value="H2"/>
    <xs:enumeration value="H3"/>
    <xs:enumeration value="H9"/>
  </xs:restriction>
</xs:simpleType>
Complex Type document-id
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#document-id
Used by
Model
Children document-id
Source

<xs:complexType name="document-id">
  <xs:sequence>
    <xs:element ref="document-id"/>
  </xs:sequence>
</xs:complexType>
Complex Type date-entering-into-force
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#NO_NAMESPACE_date-entering-into-force
Used by
Model
Children date-entering-into-force
Source

<xs:complexType name="date-entering-into-force">
  <xs:sequence>
    <xs:element ref="date-entering-into-force"/>
  </xs:sequence>
</xs:complexType>
Complex Type division
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#NO_NAMESPACE_divisionch-patent-doc-v1-0-ige2-0_xsd.tmp#related-publication
Used by
Model
Children division, related-publication
Source

<xs:complexType name="division">
  <xs:choice>
    <xs:element ref="division"/>
    <xs:element ref="related-publication"/>
  </xs:choice>
</xs:complexType>
Complex Type relation
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#NO_NAMESPACE_relation
Used by
Element division
Model
Children relation
Source

<xs:complexType name="relation">
  <xs:sequence>
    <xs:element ref="relation"/>
  </xs:sequence>
</xs:complexType>
Complex Type tbl.table.mdl
Namespace No namespace

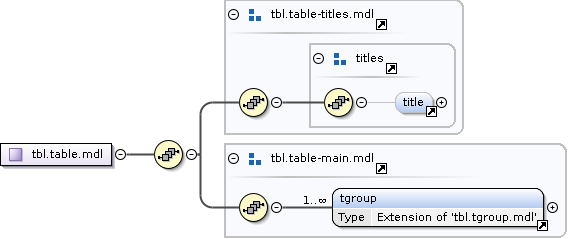

Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#titlech-patent-doc-v1-0-ige2-0_xsd.tmp#titlesch-patent-doc-v1-0-ige2-0_xsd.tmp#tbl.table-titles.mdlch-patent-doc-v1-0-ige2-0_xsd.tmp#tgroupch-patent-doc-v1-0-ige2-0_xsd.tmp#tbl.table-main.mdl
Used by
Element table
Model
Children tgroup, title
Source

<xs:complexType name="tbl.table.mdl">
  <xs:sequence>
    <xs:group ref="tbl.table-titles.mdl"/>
    <xs:group ref="tbl.table-main.mdl"/>
  </xs:sequence>
</xs:complexType>
Complex Type tbl.tgroup.mdl
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#colspecch-patent-doc-v1-0-ige2-0_xsd.tmp#theadch-patent-doc-v1-0-ige2-0_xsd.tmp#tbody
Used by
Element tgroup
Model
Children colspec, tbody, thead
Source

<xs:complexType name="tbl.tgroup.mdl">
  <xs:sequence>
    <xs:element ref="colspec" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="thead" minOccurs="0"/>
    <xs:element ref="tbody"/>
  </xs:sequence>
</xs:complexType>
Simple Type yesorno
Namespace No namespace
Diagram
Diagram
Type xs:NMTOKEN
Used by
Source

<xs:simpleType name="yesorno">
  <xs:restriction base="xs:NMTOKEN"/>
</xs:simpleType>
Complex Type tbl.row.mdl
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#entry
Used by
Element row
Model
Children entry
Source

<xs:complexType name="tbl.row.mdl">
  <xs:sequence>
    <xs:element ref="entry" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Attribute img / @id
Namespace No namespace
Type imgid
Properties
use required
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & (i(a|af|f|b)[0-9]{4})
Used by
Element img
Source

<xs:attribute name="id" type="imgid" use="required"/>
Attribute img / @he
Namespace No namespace
Type dez_1_300_2f
Properties
use required
Facets
fractionDigits 2
maxInclusive 300
minInclusive 1
Used by
Element img
Source

<xs:attribute name="he" type="dez_1_300_2f" use="required"/>
Attribute img / @wi
Namespace No namespace
Type dez_1_300_2f
Properties
use required
Facets
fractionDigits 2
maxInclusive 300
minInclusive 1
Used by
Element img
Source

<xs:attribute name="wi" type="dez_1_300_2f" use="required"/>
Attribute img / @file
Namespace No namespace
Properties
use required
Used by
Element img
Source

<xs:attribute name="file" use="required"/>
Attribute img / @alt
Namespace No namespace
Used by
Element img
Source

<xs:attribute name="alt"/>
Attribute img / @img-content
Namespace No namespace
Type restriction of xs:token
Properties
default drawing
Facets
enumeration drawing
enumeration chem
enumeration table
enumeration math
Used by
Element img
Source

<xs:attribute name="img-content" default="drawing">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="drawing"/>
      <xs:enumeration value="chem"/>
      <xs:enumeration value="table"/>
      <xs:enumeration value="math"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute img / @img-format
Namespace No namespace
Type restriction of xs:token
Properties
use required
Facets
enumeration jpg
enumeration tif
Used by
Element img
Source

<xs:attribute name="img-format" use="required">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="jpg"/>
      <xs:enumeration value="tif"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute img / @orientation
Namespace No namespace
Type restriction of xs:token
Properties
default portrait
Facets
enumeration portrait
enumeration landscape
Used by
Element img
Source

<xs:attribute name="orientation" default="portrait">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="portrait"/>
      <xs:enumeration value="landscape"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute img / @inline
Namespace No namespace
Type restriction of xs:token
Properties
default no
Facets
enumeration yes
enumeration no
Used by
Element img
Source

<xs:attribute name="inline" default="no">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="yes"/>
      <xs:enumeration value="no"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute dt / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Element dt
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute figref / @idref
Namespace No namespace
Type xs:IDREFS
Properties
content simple
Used by
Element figref
Source

<xs:attribute name="idref" type="xs:IDREFS"/>
Attribute figref / @num
Namespace No namespace
Type num
Properties
content simple
Facets
maxInclusive 9999
minInclusive 1
Used by
Element figref
Source

<xs:attribute name="num" type="num"/>
Attribute chemistry / @id
Namespace No namespace
Type chemistryid
Properties
content simple
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & ((chem|chema)[0-9]{4})
Used by
Element chemistry
Source

<xs:attribute name="id" type="chemistryid"/>
Attribute chemistry / @num
Namespace No namespace
Type num
Properties
use required
Facets
maxInclusive 9999
minInclusive 1
Used by
Element chemistry
Source

<xs:attribute name="num" type="num" use="required"/>
Attribute maths / @id
Namespace No namespace
Type mathsid
Properties
content simple
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & ((math|matha)[0-9]{4})
Used by
Element maths
Source

<xs:attribute name="id" type="mathsid"/>
Attribute maths / @num
Namespace No namespace
Type num
Properties
use required
Facets
maxInclusive 9999
minInclusive 1
Used by
Element maths
Source

<xs:attribute name="num" type="num" use="required"/>
Attribute dl / @tsize
Namespace No namespace
Type dez_1_300_2f
Properties
use required
Facets
fractionDigits 2
maxInclusive 300
minInclusive 1
Used by
Element dl
Source

<xs:attribute name="tsize" type="dez_1_300_2f" use="required"/>
Attribute dl / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Element dl
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute li / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Element li
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute li / @num
Namespace No namespace
Type num
Properties
content simple
Facets
maxInclusive 9999
minInclusive 1
Used by
Element li
Source

<xs:attribute name="num" type="num"/>
Attribute ul / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Element ul
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute ul / @list-style
Namespace No namespace
Type restriction of xs:token
Properties
default dash
Facets
enumeration dash
Used by
Element ul
Source

<xs:attribute name="list-style" default="dash">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="dash"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute plain-language-designation / @lang
Namespace No namespace
Type restriction of xs:string
Properties
content simple
Facets
enumeration PATENTSCHRIFT
enumeration FASCICULE DU BREVET
enumeration FASCICOLO DES BREVETTO
enumeration TEILVERZICHT
enumeration RENONCIATION PARTIELLE
enumeration RINUNCIA PARZIALE
enumeration TEILNICHTIGKEIT
enumeration NULLITÉ PARTIELLE
enumeration NULLITÀ PARZIALE
Used by
Source

<xs:attribute name="lang">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="PATENTSCHRIFT"/>
      <xs:enumeration value="FASCICULE DU BREVET"/>
      <xs:enumeration value="FASCICOLO DES BREVETTO"/>
      <xs:enumeration value="TEILVERZICHT"/>
      <xs:enumeration value="RENONCIATION PARTIELLE"/>
      <xs:enumeration value="RINUNCIA PARZIALE"/>
      <xs:enumeration value="TEILNICHTIGKEIT"/>
      <xs:enumeration value="NULLITÉ PARTIELLE"/>
      <xs:enumeration value="NULLITÀ PARZIALE"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute publication-reference / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute classification-ipcr / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute classification-ipcr / @sequence
Namespace No namespace
Type xs:positiveInteger
Properties
content simple
Used by
Source

<xs:attribute name="sequence" type="xs:positiveInteger"/>
Attribute classifications-ipcr / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute application-reference / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute application-reference / @appl-type
Namespace No namespace
Properties
use required
Used by
Source

<xs:attribute name="appl-type" use="required"/>
Attribute priority-claim / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Element priority-claim
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute priority-claim / @sequence
Namespace No namespace
Type xs:positiveInteger
Properties
use required
Used by
Element priority-claim
Source

<xs:attribute name="sequence" type="xs:positiveInteger" use="required"/>
Attribute priority-claim / @kind
Namespace No namespace
Type restriction of xs:token
Properties
use required
Facets
enumeration national
Used by
Element priority-claim
Source

<xs:attribute name="kind" use="required">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="national"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute addressbook / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Element addressbook
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute applicant / @sequence
Namespace No namespace
Type xs:positiveInteger
Properties
use required
Used by
Element applicant
Source

<xs:attribute name="sequence" type="xs:positiveInteger" use="required"/>
Attribute applicant / @app-type
Namespace No namespace
Type restriction of xs:token
Properties
use required
Facets
enumeration applicant
Used by
Element applicant
Source

<xs:attribute name="app-type" use="required">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="applicant"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute applicant / @designation
Namespace No namespace
Type restriction of xs:token
Properties
use required
Facets
enumeration as-indicated
Used by
Element applicant
Source

<xs:attribute name="designation" use="required">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="as-indicated"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute ch-inventor-entitlement-waiver / @waiver-type
Namespace No namespace
Type restriction of xs:token
Properties
use required
Facets
enumeration one
enumeration all
enumeration the-other
enumeration all-others
Used by
Source

<xs:attribute name="waiver-type" use="required">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="one"/>
      <xs:enumeration value="all"/>
      <xs:enumeration value="the-other"/>
      <xs:enumeration value="all-others"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute inventor / @sequence
Namespace No namespace
Type xs:positiveInteger
Properties
use required
Used by
Element inventor
Source

<xs:attribute name="sequence" type="xs:positiveInteger" use="required"/>
Attribute agent / @sequence
Namespace No namespace
Type xs:positiveInteger
Properties
use required
Used by
Element agent
Source

<xs:attribute name="sequence" type="xs:positiveInteger" use="required"/>
Attribute agent / @rep-type
Namespace No namespace
Type restriction of xs:token
Properties
use required
Facets
enumeration agent
Used by
Element agent
Source

<xs:attribute name="rep-type" use="required">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="agent"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute invention-title / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Element invention-title
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute gazette-reference / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute bibliographic-data / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute colspec / @colnum
Namespace No namespace
Type xs:NMTOKEN
Properties
content simple
Used by
Element colspec
Source

<xs:attribute name="colnum" type="xs:NMTOKEN"/>
Attribute colspec / @colname
Namespace No namespace
Type xs:NMTOKEN
Properties
content simple
Used by
Element colspec
Source

<xs:attribute name="colname" type="xs:NMTOKEN"/>
Attribute colspec / @colwidth
Namespace No namespace
Used by
Element colspec
Source

<xs:attribute name="colwidth"/>
Attribute colspec / @colsep
Namespace No namespace
Type yesorno
Properties
content simple
Used by
Element colspec
Source

<xs:attribute name="colsep" type="yesorno"/>
Attribute colspec / @rowsep
Namespace No namespace
Type yesorno
Properties
content simple
Used by
Element colspec
Source

<xs:attribute name="rowsep" type="yesorno"/>
Attribute colspec / @align
Namespace No namespace
Type restriction of xs:token
Properties
content simple
Facets
enumeration left
enumeration right
enumeration center
enumeration justify
enumeration char
Used by
Element colspec
Source

<xs:attribute name="align">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="left"/>
      <xs:enumeration value="right"/>
      <xs:enumeration value="center"/>
      <xs:enumeration value="justify"/>
      <xs:enumeration value="char"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute colspec / @char
Namespace No namespace
Used by
Element colspec
Source

<xs:attribute name="char"/>
Attribute colspec / @charoff
Namespace No namespace
Type xs:NMTOKEN
Properties
content simple
Used by
Element colspec
Source

<xs:attribute name="charoff" type="xs:NMTOKEN"/>
Attribute entry / @colname
Namespace No namespace
Type xs:NMTOKEN
Properties
content simple
Used by
Element entry
Source

<xs:attribute name="colname" type="xs:NMTOKEN"/>
Attribute entry / @namest
Namespace No namespace
Type xs:NMTOKEN
Properties
content simple
Used by
Element entry
Source

<xs:attribute name="namest" type="xs:NMTOKEN"/>
Attribute entry / @nameend
Namespace No namespace
Type xs:NMTOKEN
Properties
content simple
Used by
Element entry
Source

<xs:attribute name="nameend" type="xs:NMTOKEN"/>
Attribute entry / @morerows
Namespace No namespace
Type xs:NMTOKEN
Properties
content simple
Used by
Element entry
Source

<xs:attribute name="morerows" type="xs:NMTOKEN"/>
Attribute entry / @colsep
Namespace No namespace
Type yesorno
Properties
content simple
Used by
Element entry
Source

<xs:attribute name="colsep" type="yesorno"/>
Attribute entry / @rowsep
Namespace No namespace
Type yesorno
Properties
content simple
Used by
Element entry
Source

<xs:attribute name="rowsep" type="yesorno"/>
Attribute entry / @align
Namespace No namespace
Type restriction of xs:token
Properties
content simple
Facets
enumeration left
enumeration right
enumeration center
enumeration justify
enumeration char
Used by
Element entry
Source

<xs:attribute name="align">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="left"/>
      <xs:enumeration value="right"/>
      <xs:enumeration value="center"/>
      <xs:enumeration value="justify"/>
      <xs:enumeration value="char"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute entry / @char
Namespace No namespace
Used by
Element entry
Source

<xs:attribute name="char"/>
Attribute entry / @charoff
Namespace No namespace
Type xs:NMTOKEN
Properties
content simple
Used by
Element entry
Source

<xs:attribute name="charoff" type="xs:NMTOKEN"/>
Attribute entry / @valign
Namespace No namespace
Type restriction of xs:token
Properties
content simple
Facets
enumeration top
enumeration middle
enumeration bottom
Used by
Element entry
Source

<xs:attribute name="valign">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="top"/>
      <xs:enumeration value="middle"/>
      <xs:enumeration value="bottom"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute row / @rowsep
Namespace No namespace
Type yesorno
Properties
content simple
Used by
Element row
Source

<xs:attribute name="rowsep" type="yesorno"/>
Attribute row / @valign
Namespace No namespace
Type restriction of xs:token
Properties
content simple
Facets
enumeration top
enumeration middle
enumeration bottom
Used by
Element row
Source

<xs:attribute name="valign">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="top"/>
      <xs:enumeration value="middle"/>
      <xs:enumeration value="bottom"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute thead / @valign
Namespace No namespace
Type restriction of xs:token
Properties
content simple
Facets
enumeration top
enumeration middle
enumeration bottom
Used by
Element thead
Source

<xs:attribute name="valign">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="top"/>
      <xs:enumeration value="middle"/>
      <xs:enumeration value="bottom"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute tbody / @valign
Namespace No namespace
Type restriction of xs:token
Properties
content simple
Facets
enumeration top
enumeration middle
enumeration bottom
Used by
Element tbody
Source

<xs:attribute name="valign">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="top"/>
      <xs:enumeration value="middle"/>
      <xs:enumeration value="bottom"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute tgroup / @cols
Namespace No namespace
Type xs:NMTOKEN
Properties
use required
Used by
Element tgroup
Source

<xs:attribute name="cols" type="xs:NMTOKEN" use="required"/>
Attribute tgroup / @colsep
Namespace No namespace
Type yesorno
Properties
content simple
Used by
Element tgroup
Source

<xs:attribute name="colsep" type="yesorno"/>
Attribute tgroup / @rowsep
Namespace No namespace
Type yesorno
Properties
content simple
Used by
Element tgroup
Source

<xs:attribute name="rowsep" type="yesorno"/>
Attribute tgroup / @align
Namespace No namespace
Type restriction of xs:token
Properties
content simple
Facets
enumeration left
enumeration right
enumeration center
enumeration justify
enumeration char
Used by
Element tgroup
Source

<xs:attribute name="align">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="left"/>
      <xs:enumeration value="right"/>
      <xs:enumeration value="center"/>
      <xs:enumeration value="justify"/>
      <xs:enumeration value="char"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute table / @frame
Namespace No namespace
Type restriction of xs:token
Properties
content simple
Facets
enumeration top
enumeration bottom
enumeration topbot
enumeration all
enumeration sides
enumeration none
Used by
Element table
Source

<xs:attribute name="frame">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="top"/>
      <xs:enumeration value="bottom"/>
      <xs:enumeration value="topbot"/>
      <xs:enumeration value="all"/>
      <xs:enumeration value="sides"/>
      <xs:enumeration value="none"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute table / @colsep
Namespace No namespace
Type yesorno
Properties
content simple
Used by
Element table
Source

<xs:attribute name="colsep" type="yesorno"/>
Attribute table / @rowsep
Namespace No namespace
Type yesorno
Properties
content simple
Used by
Element table
Source

<xs:attribute name="rowsep" type="yesorno"/>
Attribute tbl.table.att / @pgwide
Namespace No namespace
Type yesorno
Properties
content simple
Used by
Attribute Group tbl.table.att
Source

<xs:attribute name="pgwide" type="yesorno"/>
Attribute tables / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Element tables
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute tables / @num
Namespace No namespace
Type num
Properties
use required
Facets
maxInclusive 9999
minInclusive 1
Used by
Element tables
Source

<xs:attribute name="num" type="num" use="required"/>
Attribute p / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Element p
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute p / @num
Namespace No namespace
Type num
Properties
use required
Facets
maxInclusive 9999
minInclusive 1
Used by
Element p
Source

<xs:attribute name="num" type="num" use="required"/>
Attribute abstract / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Element abstract
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute heading / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Element heading
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute description / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Element description
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute claim / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Element claim
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute claim / @num
Namespace No namespace
Type num
Properties
use required
Facets
maxInclusive 9999
minInclusive 1
Used by
Element claim
Source

<xs:attribute name="num" type="num" use="required"/>
Attribute claims / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Element claims
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute figure / @id
Namespace No namespace
Type figid
Properties
use required
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & (f[0-9]{4})
Used by
Element figure
Source

<xs:attribute name="id" type="figid" use="required"/>
Attribute figure / @num
Namespace No namespace
Type num
Properties
use required
Facets
maxInclusive 9999
minInclusive 1
Used by
Element figure
Source

<xs:attribute name="num" type="num" use="required"/>
Attribute drawings / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Element drawings
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute ch-patent-document / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute ch-patent-document / @lang
Namespace No namespace
Type lang
Properties
use required
Facets
enumeration de
enumeration fr
enumeration it
Used by
Source

<xs:attribute name="lang" type="lang" use="required"/>
Attribute ch-patent-document / @dtd-version
Namespace No namespace
Used by
Source

<xs:attribute name="dtd-version"/>
Attribute ch-patent-document / @country
Namespace No namespace
Type restriction of xs:NMTOKEN
Properties
use required
fixed CH
Facets
enumeration CH
Used by
Source

<xs:attribute name="country" use="required" fixed="CH">
  <xs:simpleType>
    <xs:restriction base="xs:NMTOKEN">
      <xs:enumeration value="CH"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute ch-patent-document / @date-produced
Namespace No namespace
Type xs:date
Properties
content simple
Used by
Source

<xs:attribute name="date-produced" type="xs:date"/>
Attribute ch-patent-document / @date-publ
Namespace No namespace
Type xs:date
Properties
content simple
Used by
Source

<xs:attribute name="date-publ" type="xs:date"/>
Element Group name_group
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#name
Used by
Element addressbook
Model
Children name
Source

<xs:group name="name_group">
  <xs:sequence>
    <xs:element ref="name"/>
  </xs:sequence>
</xs:group>
Element Group tbl.table-titles.mdl
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#titlech-patent-doc-v1-0-ige2-0_xsd.tmp#titles
Used by
Complex Type tbl.table.mdl
Element table
Model
Children title
Source

<xs:group name="tbl.table-titles.mdl">
  <xs:sequence>
    <xs:group ref="titles"/>
  </xs:sequence>
</xs:group>
Element Group titles
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#title
Used by
Element Group tbl.table-titles.mdl
Model
Children title
Source

<xs:group name="titles">
  <xs:sequence>
    <xs:element ref="title" minOccurs="0"/>
  </xs:sequence>
</xs:group>
Element Group tbl.table-main.mdl
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#tgroup
Used by
Complex Type tbl.table.mdl
Element table
Model
Children tgroup
Source

<xs:group name="tbl.table-main.mdl">
  <xs:sequence>
    <xs:element ref="tgroup" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:group>
Attribute Group tbl.table.att
Namespace No namespace
Diagram
Diagramch-patent-doc-v1-0-ige2-0_xsd.tmp#tbl.table.att_pgwide
Used by
Element table
Attributes
QName Type Use
pgwide yesorno optional
Source

<xs:attributeGroup name="tbl.table.att">
  <xs:attribute name="pgwide" type="yesorno"/>
</xs:attributeGroup>
XML Schema documentation generated by ® XML Editor.
