Main schema datadelivery-patent-1-0-0.xsd
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Properties
attribute form default unqualified
element form default qualified

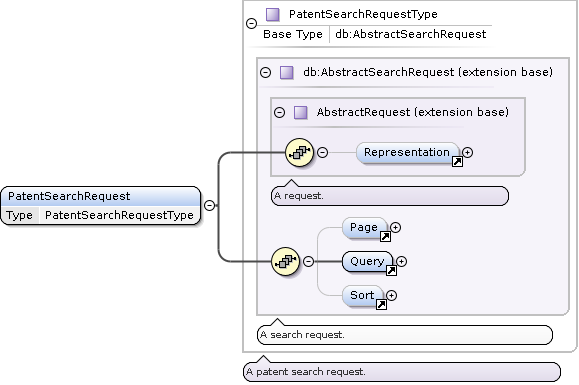

Element PatentSearchRequest
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#Representationdatadelivery-common-1-0-0_xsd.tmp#AbstractRequestdatadelivery-common-1-0-0_xsd.tmp#Pagedatadelivery-common-1-0-0_xsd.tmp#Querydatadelivery-common-1-0-0_xsd.tmp#Sortdatadelivery-common-1-0-0_xsd.tmp#AbstractSearchRequestdatadelivery-patent-1-0-0_xsd.tmp#PatentSearchRequestType
Type PatentSearchRequestType
Type hierarchy
Properties
content complex
Model
Children Page, Query, Representation, Sort
Instance

<PatentSearchRequest xmlns="urn:ige:schema:xsd:datadeliverypatent-1.0.0" xmlns:db="urn:ige:schema:xsd:datadeliverycommon-1.0.0">
  <db:Representation details="Default" images="" itemBags="" strictness="Strict" thumbnails="">{0,1}</db:Representation>
  <db:Page size="">{0,1}</db:Page>
  <db:Query slice="1/1">{1,1}</db:Query>
  <db:Sort>{0,1}</db:Sort>
</PatentSearchRequest>
Source

<xs:element name="PatentSearchRequest" type="PatentSearchRequestType"/>
Element ApplicationDateSort
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#AbstractSortField
Substitution Group Affiliation
Source

<xs:element name="ApplicationDateSort" substitutionGroup="db:AbstractSortField"/>
Element PublicationDateSort
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#AbstractSortField
Substitution Group Affiliation
Source

<xs:element name="PublicationDateSort" substitutionGroup="db:AbstractSortField"/>
Element GrantDateSort
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#AbstractSortField
Substitution Group Affiliation
Source

<xs:element name="GrantDateSort" substitutionGroup="db:AbstractSortField"/>
Element MaximumTermOfProtectionDateSort
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#AbstractSortField
Substitution Group Affiliation
Source

<xs:element name="MaximumTermOfProtectionDateSort" substitutionGroup="db:AbstractSortField"/>
Element PatentNumberSort
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#AbstractSortField
Substitution Group Affiliation
Source

<xs:element name="PatentNumberSort" substitutionGroup="db:AbstractSortField"/>

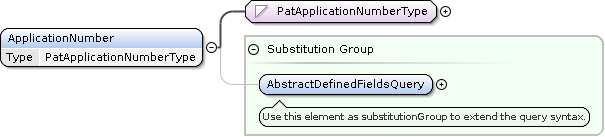

Element ApplicationNumber
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-patent-1-0-0_xsd.tmp#PatApplicationNumberTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type PatApplicationNumberType
Properties
content simple
Facets
pattern CH[0-9?]{6}/[0-9?]{4}|CH[0-9?]{6}/[0-9?*]{1,4}|[*]/[0-9?*]{1,4}|[*]/[*]|EP[0-9?*]{1,8}|([*]|[?]{2})[0-9?*]{1,8}|[*]
Substitution Group Affiliation
Source

<xs:element name="ApplicationNumber" type="PatApplicationNumberType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

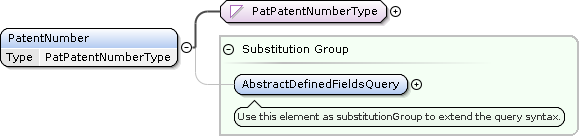

Element PatentNumber
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-patent-1-0-0_xsd.tmp#PatPatentNumberTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type PatPatentNumberType
Properties
content simple
Facets
pattern [A-Z?]{2}[0-9?*]{1,7}|([*]|[?]{2})[0-9?*]{1,7}|[*]
Substitution Group Affiliation
Source

<xs:element name="PatentNumber" type="PatPatentNumberType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element Title
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="Title" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element Owner
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="Owner" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element Representative
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="Representative" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element Inventor
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="Inventor" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element Licensee
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="Licensee" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element IPC
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="IPC" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

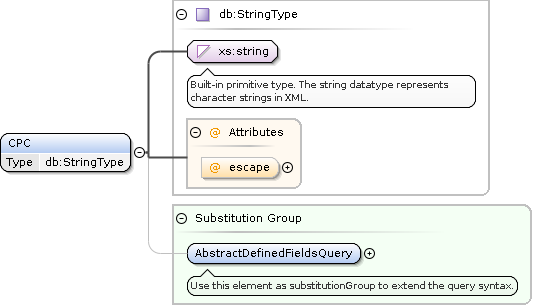

Element CPC
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="CPC" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element PCTApplication
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="PCTApplication" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

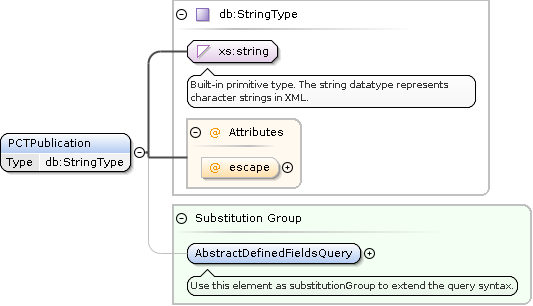

Element PCTPublication
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="PCTPublication" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

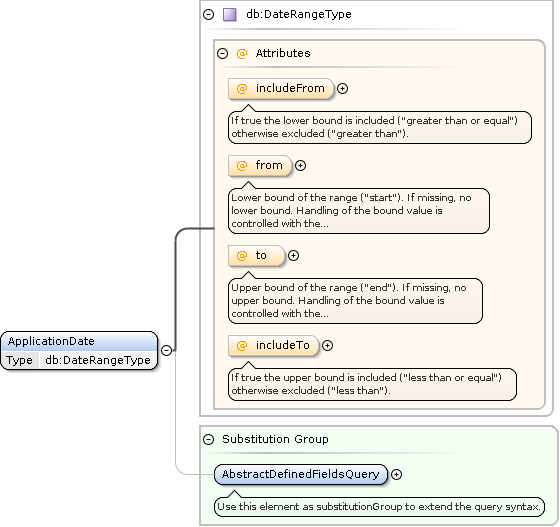

Element ApplicationDate
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeFromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_fromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_todatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeTodatadelivery-common-1-0-0_xsd.tmp#DateRangeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type DateRangeType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Default Use Annotation
from dateOrDateTime optional
Lower bound of the range ("start"). If missing, no lower bound. Handling of the bound value is controlled with the @includeFrom attribute.
includeFrom xs:boolean true optional
If true the lower bound is included ("greater than or equal") otherwise excluded ("greater than").
includeTo xs:boolean false optional
If true the upper bound is included ("less than or equal") otherwise excluded ("less than").
to dateOrDateTime optional
Upper bound of the range ("end"). If missing, no upper bound. Handling of the bound value is controlled with the @includeTo attribute.
Source

<xs:element name="ApplicationDate" type="db:DateRangeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

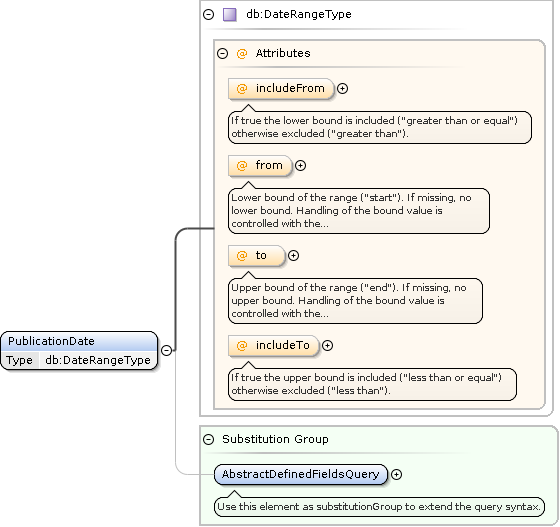

Element PublicationDate
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeFromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_fromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_todatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeTodatadelivery-common-1-0-0_xsd.tmp#DateRangeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type DateRangeType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Default Use Annotation
from dateOrDateTime optional
Lower bound of the range ("start"). If missing, no lower bound. Handling of the bound value is controlled with the @includeFrom attribute.
includeFrom xs:boolean true optional
If true the lower bound is included ("greater than or equal") otherwise excluded ("greater than").
includeTo xs:boolean false optional
If true the upper bound is included ("less than or equal") otherwise excluded ("less than").
to dateOrDateTime optional
Upper bound of the range ("end"). If missing, no upper bound. Handling of the bound value is controlled with the @includeTo attribute.
Source

<xs:element name="PublicationDate" type="db:DateRangeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

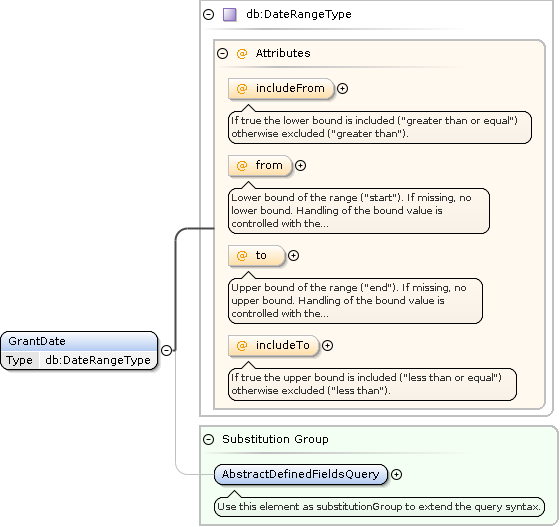

Element GrantDate
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeFromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_fromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_todatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeTodatadelivery-common-1-0-0_xsd.tmp#DateRangeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type DateRangeType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Default Use Annotation
from dateOrDateTime optional
Lower bound of the range ("start"). If missing, no lower bound. Handling of the bound value is controlled with the @includeFrom attribute.
includeFrom xs:boolean true optional
If true the lower bound is included ("greater than or equal") otherwise excluded ("greater than").
includeTo xs:boolean false optional
If true the upper bound is included ("less than or equal") otherwise excluded ("less than").
to dateOrDateTime optional
Upper bound of the range ("end"). If missing, no upper bound. Handling of the bound value is controlled with the @includeTo attribute.
Source

<xs:element name="GrantDate" type="db:DateRangeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

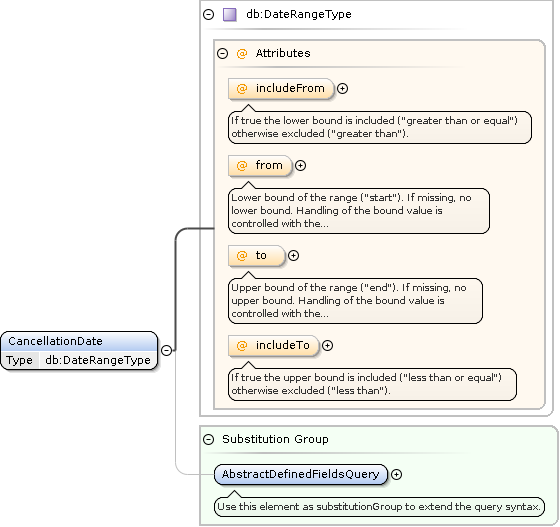

Element CancellationDate
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeFromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_fromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_todatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeTodatadelivery-common-1-0-0_xsd.tmp#DateRangeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type DateRangeType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Default Use Annotation
from dateOrDateTime optional
Lower bound of the range ("start"). If missing, no lower bound. Handling of the bound value is controlled with the @includeFrom attribute.
includeFrom xs:boolean true optional
If true the lower bound is included ("greater than or equal") otherwise excluded ("greater than").
includeTo xs:boolean false optional
If true the upper bound is included ("less than or equal") otherwise excluded ("less than").
to dateOrDateTime optional
Upper bound of the range ("end"). If missing, no upper bound. Handling of the bound value is controlled with the @includeTo attribute.
Source

<xs:element name="CancellationDate" type="db:DateRangeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

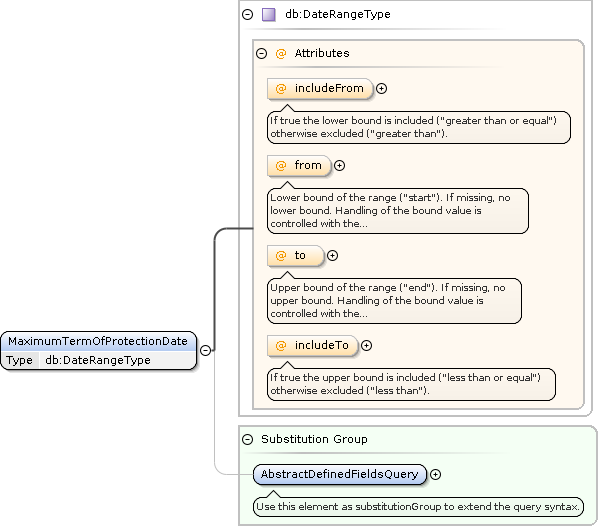

Element MaximumTermOfProtectionDate
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeFromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_fromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_todatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeTodatadelivery-common-1-0-0_xsd.tmp#DateRangeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type DateRangeType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Default Use Annotation
from dateOrDateTime optional
Lower bound of the range ("start"). If missing, no lower bound. Handling of the bound value is controlled with the @includeFrom attribute.
includeFrom xs:boolean true optional
If true the lower bound is included ("greater than or equal") otherwise excluded ("greater than").
includeTo xs:boolean false optional
If true the upper bound is included ("less than or equal") otherwise excluded ("less than").
to dateOrDateTime optional
Upper bound of the range ("end"). If missing, no upper bound. Handling of the bound value is controlled with the @includeTo attribute.
Source

<xs:element name="MaximumTermOfProtectionDate" type="db:DateRangeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

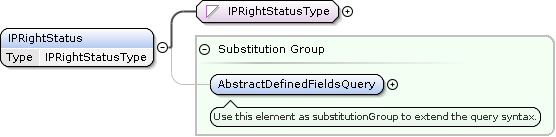

Element IPRightStatus
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-patent-1-0-0_xsd.tmp#IPRightStatusTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type IPRightStatusType
Properties
content simple
Facets
enumeration Active
enumeration Initiated
enumeration Cancelled
Substitution Group Affiliation
Source

<xs:element name="IPRightStatus" type="IPRightStatusType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

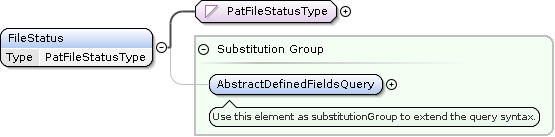

Element FileStatus
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-patent-1-0-0_xsd.tmp#PatFileStatusTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type PatFileStatusType
Properties
content simple
Facets
enumeration MaintenanceWithChangedScope
enumeration RectificationEntirePatentApplication
enumeration RectificationEntirePatent
enumeration RectificationPartialSurrenderOrPartialNullity
enumeration RectificationFrontPagePatent
enumeration RectificationFrontPagePatentApplication
enumeration PatentGranted
enumeration Initiated
enumeration PatentAfterLimitationProcedure
enumeration PatentApplicationWithSearchReport
enumeration PatentApplicationWithoutSearchReport
enumeration OnlySearchReportWithFrontPageOfPatentApplication
enumeration PartialNullity
enumeration PartialSurrender
enumeration NonPublishedPatentApplication
enumeration AdditionalPartialSurrender
Substitution Group Affiliation
Source

<xs:element name="FileStatus" type="PatFileStatusType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

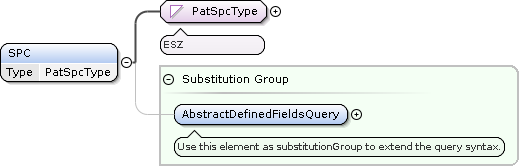

Element SPC
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-patent-1-0-0_xsd.tmp#PatSpcTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type PatSpcType
Properties
content simple
Substitution Group Affiliation
Source

<xs:element name="SPC" type="PatSpcType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

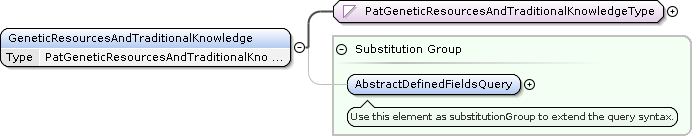

Element GeneticResourcesAndTraditionalKnowledge
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-patent-1-0-0_xsd.tmp#PatGeneticResourcesAndTraditionalKnowledgeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type PatGeneticResourcesAndTraditionalKnowledgeType
Properties
content simple
Substitution Group Affiliation
Source

<xs:element name="GeneticResourcesAndTraditionalKnowledge" type="PatGeneticResourcesAndTraditionalKnowledgeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

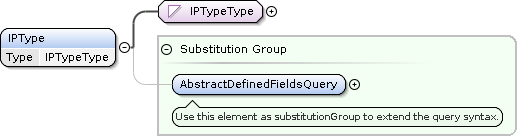

Element IPType
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagramdatadelivery-patent-1-0-0_xsd.tmp#IPTypeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type IPTypeType
Properties
content simple
Facets
enumeration CH patent
enumeration EP
Substitution Group Affiliation
Source

<xs:element name="IPType" type="IPTypeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Complex Type PatentSearchRequestType
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Annotations

A patent search request.
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#Representationdatadelivery-common-1-0-0_xsd.tmp#AbstractRequestdatadelivery-common-1-0-0_xsd.tmp#Pagedatadelivery-common-1-0-0_xsd.tmp#Querydatadelivery-common-1-0-0_xsd.tmp#Sortdatadelivery-common-1-0-0_xsd.tmp#AbstractSearchRequest
Type extension of AbstractSearchRequest
Type hierarchy
Used by
Model
Children Page, Query, Representation, Sort
Source

<xs:complexType name="PatentSearchRequestType">
  <xs:annotation>
    <xs:documentation>A patent search request.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="db:AbstractSearchRequest"/>
  </xs:complexContent>
</xs:complexType>
Simple Type IPTypeType
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagram
Type restriction of xs:token
Facets
enumeration CH patent
enumeration EP
Used by
Element IPType
Source

<xs:simpleType name="IPTypeType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="CH patent"/>
    <xs:enumeration value="EP"/>
  </xs:restriction>
</xs:simpleType>
Simple Type IPRightStatusType
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagram
Type restriction of xs:token
Facets
enumeration Active
enumeration Initiated
enumeration Cancelled
Used by
Element IPRightStatus
Source

<xs:simpleType name="IPRightStatusType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="Active"/>
    <xs:enumeration value="Initiated"/>
    <xs:enumeration value="Cancelled"/>
  </xs:restriction>
</xs:simpleType>
Simple Type PatPatentNumberType
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagram
Type restriction of xs:token
Facets
pattern [A-Z?]{2}[0-9?*]{1,7}|([*]|[?]{2})[0-9?*]{1,7}|[*]
Used by
Element PatentNumber
Source

<xs:simpleType name="PatPatentNumberType">
  <xs:restriction base="xs:token">
    <xs:pattern value="[A-Z?]{2}[0-9?*]{1,7}|([*]|[?]{2})[0-9?*]{1,7}|[*]"/>
  </xs:restriction>
</xs:simpleType>
Simple Type PatApplicationNumberType
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagram
Type restriction of xs:token
Facets
pattern CH[0-9?]{6}/[0-9?]{4}|CH[0-9?]{6}/[0-9?*]{1,4}|[*]/[0-9?*]{1,4}|[*]/[*]|EP[0-9?*]{1,8}|([*]|[?]{2})[0-9?*]{1,8}|[*]
Used by
Source

<xs:simpleType name="PatApplicationNumberType">
  <xs:restriction base="xs:token">
    <xs:pattern value="CH[0-9?]{6}/[0-9?]{4}|CH[0-9?]{6}/[0-9?*]{1,4}|[*]/[0-9?*]{1,4}|[*]/[*]|EP[0-9?*]{1,8}|([*]|[?]{2})[0-9?*]{1,8}|[*]"/>
  </xs:restriction>
</xs:simpleType>
Simple Type PatFileStatusType
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagram
Type restriction of xs:token
Facets
enumeration MaintenanceWithChangedScope
enumeration RectificationEntirePatentApplication
enumeration RectificationEntirePatent
enumeration RectificationPartialSurrenderOrPartialNullity
enumeration RectificationFrontPagePatent
enumeration RectificationFrontPagePatentApplication
enumeration PatentGranted
enumeration Initiated
enumeration PatentAfterLimitationProcedure
enumeration PatentApplicationWithSearchReport
enumeration PatentApplicationWithoutSearchReport
enumeration OnlySearchReportWithFrontPageOfPatentApplication
enumeration PartialNullity
enumeration PartialSurrender
enumeration NonPublishedPatentApplication
enumeration AdditionalPartialSurrender
Used by
Element FileStatus
Source

<xs:simpleType name="PatFileStatusType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="MaintenanceWithChangedScope"/>
    <xs:enumeration value="RectificationEntirePatentApplication"/>
    <xs:enumeration value="RectificationEntirePatent"/>
    <xs:enumeration value="RectificationPartialSurrenderOrPartialNullity"/>
    <xs:enumeration value="RectificationFrontPagePatent"/>
    <xs:enumeration value="RectificationFrontPagePatentApplication"/>
    <xs:enumeration value="PatentGranted"/>
    <xs:enumeration value="Initiated"/>
    <xs:enumeration value="PatentAfterLimitationProcedure"/>
    <xs:enumeration value="PatentApplicationWithSearchReport"/>
    <xs:enumeration value="PatentApplicationWithoutSearchReport"/>
    <xs:enumeration value="OnlySearchReportWithFrontPageOfPatentApplication"/>
    <xs:enumeration value="PartialNullity"/>
    <xs:enumeration value="PartialSurrender"/>
    <xs:enumeration value="NonPublishedPatentApplication"/>
    <xs:enumeration value="AdditionalPartialSurrender"/>
  </xs:restriction>
</xs:simpleType>
Simple Type PatSpcType
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Annotations

ESZ
Diagram
Diagram
Type xs:boolean
Used by
Element SPC
Source

<xs:simpleType name="PatSpcType">
  <xs:annotation>
    <xs:documentation>ESZ</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:boolean"/>
</xs:simpleType>
Simple Type PatGeneticResourcesAndTraditionalKnowledgeType
Namespace urn:ige:schema:xsd:datadeliverypatent-1.0.0
Diagram
Diagram
Type xs:boolean
Used by
Source

<xs:simpleType name="PatGeneticResourcesAndTraditionalKnowledgeType">
  <xs:restriction base="xs:boolean"/>
</xs:simpleType>
XML Schema documentation generated by ® XML Editor.
