Main schema datadelivery-patent-publication-1-0-0.xsd
Namespace urn:ige:schema:xsd:datadeliverypatentpublication-1.0.0
Properties
attribute form default unqualified
element form default qualified
version 1.0.0

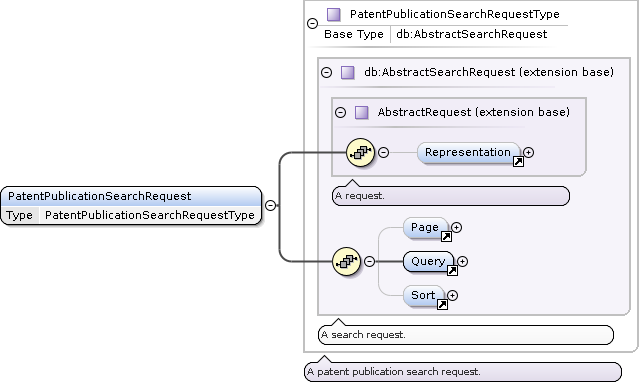

Element PatentPublicationSearchRequest
Namespace urn:ige:schema:xsd:datadeliverypatentpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#Representationdatadelivery-common-1-0-0_xsd.tmp#AbstractRequestdatadelivery-common-1-0-0_xsd.tmp#Pagedatadelivery-common-1-0-0_xsd.tmp#Querydatadelivery-common-1-0-0_xsd.tmp#Sortdatadelivery-common-1-0-0_xsd.tmp#AbstractSearchRequestdatadelivery-patent-publication-1-0-0_xsd.tmp#PatentPublicationSearchRequestType
Type PatentPublicationSearchRequestType
Type hierarchy
Properties
content complex
Model
Children Page, Query, Representation, Sort
Instance

<PatentPublicationSearchRequest xmlns="urn:ige:schema:xsd:datadeliverypatentpublication-1.0.0" xmlns:db="urn:ige:schema:xsd:datadeliverycommon-1.0.0">
  <db:Representation details="Default" images="" itemBags="" strictness="Strict" thumbnails="">{0,1}</db:Representation>
  <db:Page size="">{0,1}</db:Page>
  <db:Query slice="1/1">{1,1}</db:Query>
  <db:Sort>{0,1}</db:Sort>
</PatentPublicationSearchRequest>
Source

<xs:element name="PatentPublicationSearchRequest" type="PatentPublicationSearchRequestType"/>
Element PublicationDateSort
Namespace urn:ige:schema:xsd:datadeliverypatentpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#AbstractSortField
Substitution Group Affiliation
Source

<xs:element name="PublicationDateSort" substitutionGroup="db:AbstractSortField"/>
Element PublicationTitle
Namespace urn:ige:schema:xsd:datadeliverypatentpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="PublicationTitle" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element PublicationText
Namespace urn:ige:schema:xsd:datadeliverypatentpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="PublicationText" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element PublishedRemark
Namespace urn:ige:schema:xsd:datadeliverypatentpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="PublishedRemark" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

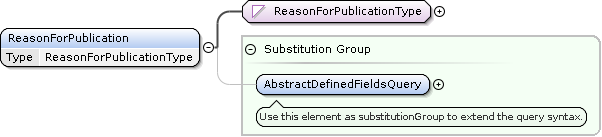

Element ReasonForPublication
Namespace urn:ige:schema:xsd:datadeliverypatentpublication-1.0.0
Diagram
Diagramdatadelivery-patent-publication-1-0-0_xsd.tmp#ReasonForPublicationTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type ReasonForPublicationType
Properties
content simple
Facets
enumeration Cancellation
enumeration Change
enumeration Correction
enumeration Grant
enumeration Publication of the application
enumeration Withdrawal/Rejection
Substitution Group Affiliation
Source

<xs:element name="ReasonForPublication" type="ReasonForPublicationType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

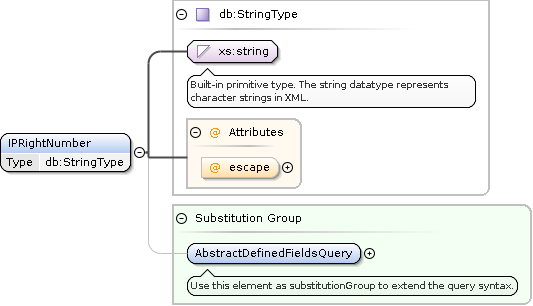

Element IPRightNumber
Namespace urn:ige:schema:xsd:datadeliverypatentpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="IPRightNumber" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element Owner
Namespace urn:ige:schema:xsd:datadeliverypatentpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="Owner" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element Representative
Namespace urn:ige:schema:xsd:datadeliverypatentpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="Representative" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

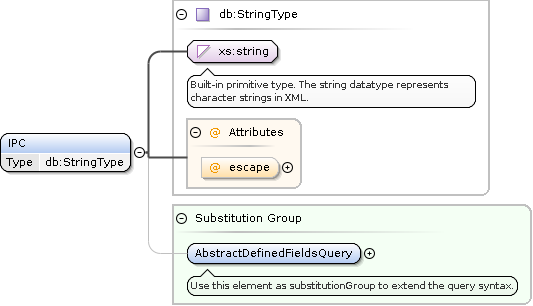

Element IPC
Namespace urn:ige:schema:xsd:datadeliverypatentpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="IPC" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

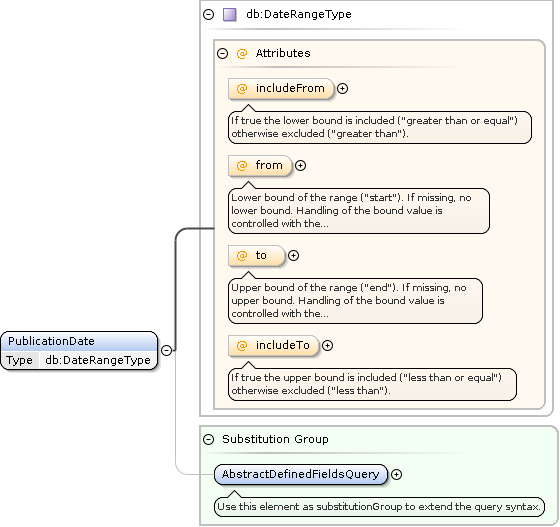

Element PublicationDate
Namespace urn:ige:schema:xsd:datadeliverypatentpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeFromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_fromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_todatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeTodatadelivery-common-1-0-0_xsd.tmp#DateRangeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type DateRangeType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Default Use Annotation
from dateOrDateTime optional
Lower bound of the range ("start"). If missing, no lower bound. Handling of the bound value is controlled with the @includeFrom attribute.
includeFrom xs:boolean true optional
If true the lower bound is included ("greater than or equal") otherwise excluded ("greater than").
includeTo xs:boolean false optional
If true the upper bound is included ("less than or equal") otherwise excluded ("less than").
to dateOrDateTime optional
Upper bound of the range ("end"). If missing, no upper bound. Handling of the bound value is controlled with the @includeTo attribute.
Source

<xs:element name="PublicationDate" type="db:DateRangeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

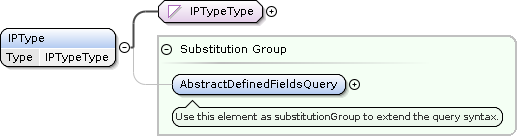

Element IPType
Namespace urn:ige:schema:xsd:datadeliverypatentpublication-1.0.0
Diagram
Diagramdatadelivery-patent-publication-1-0-0_xsd.tmp#IPTypeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type IPTypeType
Properties
content simple
Facets
enumeration CH patent
enumeration EP
Substitution Group Affiliation
Source

<xs:element name="IPType" type="IPTypeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

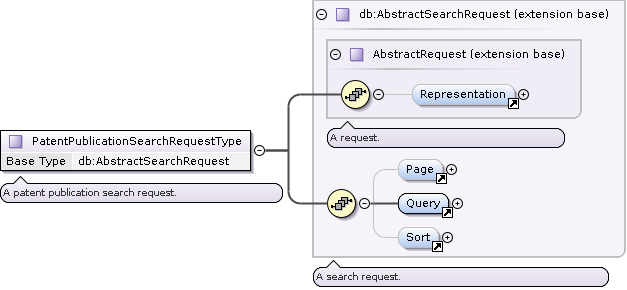

Complex Type PatentPublicationSearchRequestType
Namespace urn:ige:schema:xsd:datadeliverypatentpublication-1.0.0
Annotations

A patent publication search request.
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#Representationdatadelivery-common-1-0-0_xsd.tmp#AbstractRequestdatadelivery-common-1-0-0_xsd.tmp#Pagedatadelivery-common-1-0-0_xsd.tmp#Querydatadelivery-common-1-0-0_xsd.tmp#Sortdatadelivery-common-1-0-0_xsd.tmp#AbstractSearchRequest
Type extension of AbstractSearchRequest
Type hierarchy
Used by
Model
Children Page, Query, Representation, Sort
Source

<xs:complexType name="PatentPublicationSearchRequestType">
  <xs:annotation>
    <xs:documentation>A patent publication search request.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="db:AbstractSearchRequest"/>
  </xs:complexContent>
</xs:complexType>
Simple Type IPTypeType
Namespace urn:ige:schema:xsd:datadeliverypatentpublication-1.0.0
Diagram
Diagram
Type restriction of xs:token
Facets
enumeration CH patent
enumeration EP
Used by
Element IPType
Source

<xs:simpleType name="IPTypeType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="CH patent"/>
    <xs:enumeration value="EP"/>
  </xs:restriction>
</xs:simpleType>
Simple Type ReasonForPublicationType
Namespace urn:ige:schema:xsd:datadeliverypatentpublication-1.0.0
Diagram
Diagram
Type restriction of xs:token
Facets
enumeration Cancellation
enumeration Change
enumeration Correction
enumeration Grant
enumeration Publication of the application
enumeration Withdrawal/Rejection
Used by
Source

<xs:simpleType name="ReasonForPublicationType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="Cancellation"/>
    <xs:enumeration value="Change"/>
    <xs:enumeration value="Correction"/>
    <xs:enumeration value="Grant"/>
    <xs:enumeration value="Publication of the application"/>
    <xs:enumeration value="Withdrawal/Rejection"/>
  </xs:restriction>
</xs:simpleType>
