Main schema datadelivery-spc-1-0-0.xsd
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Properties
attribute form default unqualified
element form default qualified
version 1.0.0

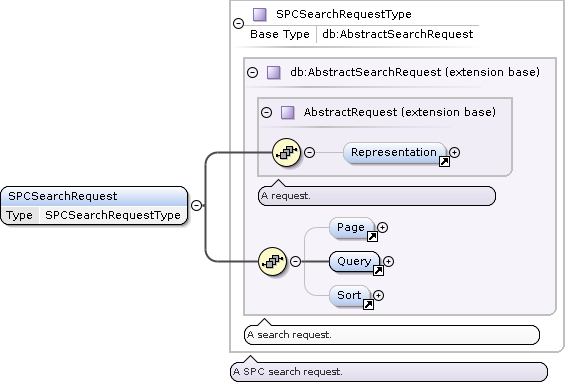

Element SPCSearchRequest
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#Representationdatadelivery-common-1-0-0_xsd.tmp#AbstractRequestdatadelivery-common-1-0-0_xsd.tmp#Pagedatadelivery-common-1-0-0_xsd.tmp#Querydatadelivery-common-1-0-0_xsd.tmp#Sortdatadelivery-common-1-0-0_xsd.tmp#AbstractSearchRequestdatadelivery-spc-1-0-0_xsd.tmp#SPCSearchRequestType
Type SPCSearchRequestType
Type hierarchy
Properties
content complex
Model
Children Page, Query, Representation, Sort
Instance

<SPCSearchRequest xmlns="urn:ige:schema:xsd:datadeliveryspc-1.0.0" xmlns:db="urn:ige:schema:xsd:datadeliverycommon-1.0.0">
  <db:Representation details="Default" images="" itemBags="" strictness="Strict" thumbnails="">{0,1}</db:Representation>
  <db:Page size="">{0,1}</db:Page>
  <db:Query slice="1/1">{1,1}</db:Query>
  <db:Sort>{0,1}</db:Sort>
</SPCSearchRequest>
Source

<xs:element name="SPCSearchRequest" type="SPCSearchRequestType"/>
Element ApplicationDateSort
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#AbstractSortField
Substitution Group Affiliation
Source

<xs:element name="ApplicationDateSort" substitutionGroup="db:AbstractSortField"/>
Element PublicationDateSort
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#AbstractSortField
Substitution Group Affiliation
Source

<xs:element name="PublicationDateSort" substitutionGroup="db:AbstractSortField"/>
Element GrantDateSort
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#AbstractSortField
Substitution Group Affiliation
Source

<xs:element name="GrantDateSort" substitutionGroup="db:AbstractSortField"/>
Element MaximumTermOfProtectionDateSort
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#AbstractSortField
Substitution Group Affiliation
Source

<xs:element name="MaximumTermOfProtectionDateSort" substitutionGroup="db:AbstractSortField"/>
Element SPCNumberSort
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#AbstractSortField
Substitution Group Affiliation
Source

<xs:element name="SPCNumberSort" substitutionGroup="db:AbstractSortField"/>

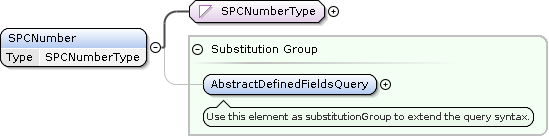

Element SPCNumber
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-spc-1-0-0_xsd.tmp#SPCNumberTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type SPCNumberType
Properties
content simple
Facets
pattern [A-Z?][0-9?]{8}/[0-9?]{2}|[*]/[\\d]{1,2}|[A-Z?][0-9?]{1,7}[*]|[*]/[*]|[*]
Substitution Group Affiliation
Source

<xs:element name="SPCNumber" type="SPCNumberType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

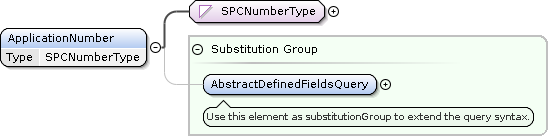

Element ApplicationNumber
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-spc-1-0-0_xsd.tmp#SPCNumberTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type SPCNumberType
Properties
content simple
Facets
pattern [A-Z?][0-9?]{8}/[0-9?]{2}|[*]/[\\d]{1,2}|[A-Z?][0-9?]{1,7}[*]|[*]/[*]|[*]
Substitution Group Affiliation
Source

<xs:element name="ApplicationNumber" type="SPCNumberType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

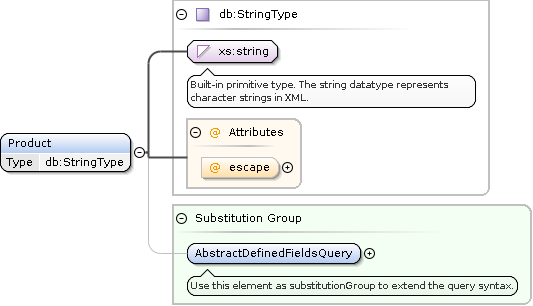

Element Product
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="Product" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

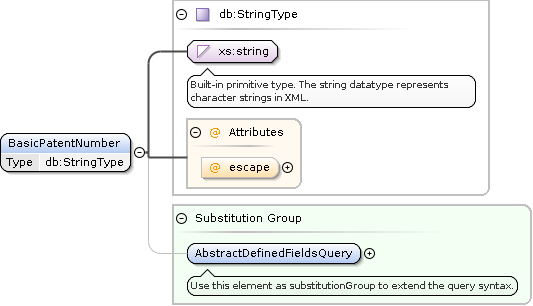

Element BasicPatentNumber
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="BasicPatentNumber" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

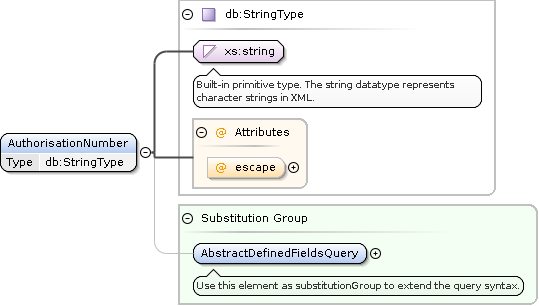

Element AuthorisationNumber
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="AuthorisationNumber" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element Owner
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="Owner" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element Representative
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="Representative" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

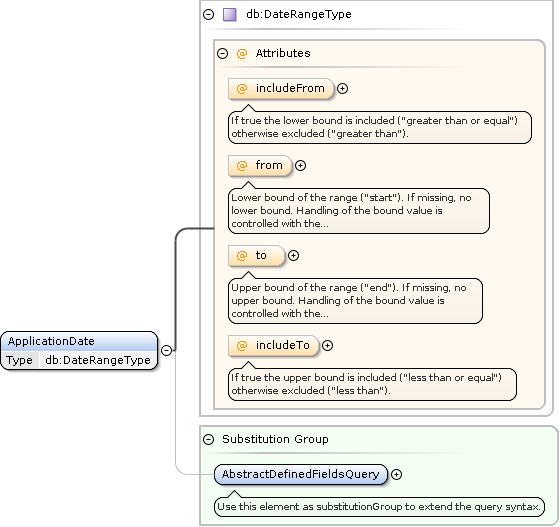

Element ApplicationDate
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeFromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_fromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_todatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeTodatadelivery-common-1-0-0_xsd.tmp#DateRangeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type DateRangeType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Default Use Annotation
from dateOrDateTime optional
Lower bound of the range ("start"). If missing, no lower bound. Handling of the bound value is controlled with the @includeFrom attribute.
includeFrom xs:boolean true optional
If true the lower bound is included ("greater than or equal") otherwise excluded ("greater than").
includeTo xs:boolean false optional
If true the upper bound is included ("less than or equal") otherwise excluded ("less than").
to dateOrDateTime optional
Upper bound of the range ("end"). If missing, no upper bound. Handling of the bound value is controlled with the @includeTo attribute.
Source

<xs:element name="ApplicationDate" type="db:DateRangeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

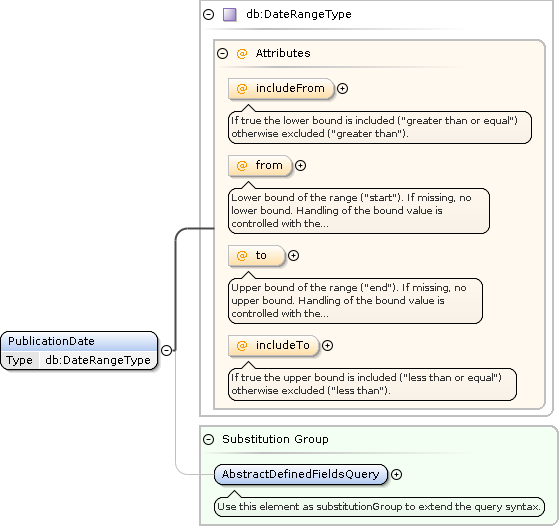

Element PublicationDate
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeFromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_fromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_todatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeTodatadelivery-common-1-0-0_xsd.tmp#DateRangeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type DateRangeType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Default Use Annotation
from dateOrDateTime optional
Lower bound of the range ("start"). If missing, no lower bound. Handling of the bound value is controlled with the @includeFrom attribute.
includeFrom xs:boolean true optional
If true the lower bound is included ("greater than or equal") otherwise excluded ("greater than").
includeTo xs:boolean false optional
If true the upper bound is included ("less than or equal") otherwise excluded ("less than").
to dateOrDateTime optional
Upper bound of the range ("end"). If missing, no upper bound. Handling of the bound value is controlled with the @includeTo attribute.
Source

<xs:element name="PublicationDate" type="db:DateRangeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

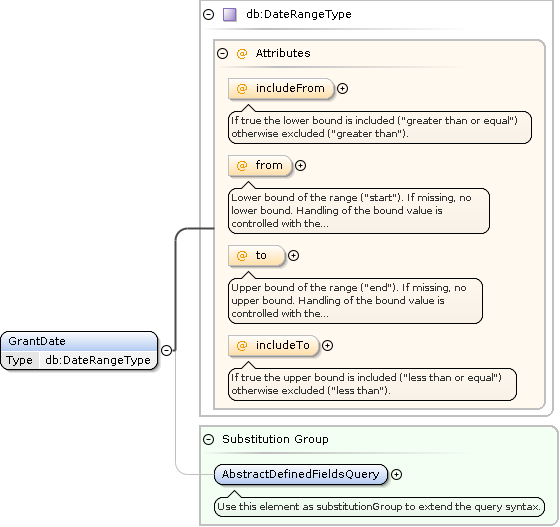

Element GrantDate
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeFromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_fromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_todatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeTodatadelivery-common-1-0-0_xsd.tmp#DateRangeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type DateRangeType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Default Use Annotation
from dateOrDateTime optional
Lower bound of the range ("start"). If missing, no lower bound. Handling of the bound value is controlled with the @includeFrom attribute.
includeFrom xs:boolean true optional
If true the lower bound is included ("greater than or equal") otherwise excluded ("greater than").
includeTo xs:boolean false optional
If true the upper bound is included ("less than or equal") otherwise excluded ("less than").
to dateOrDateTime optional
Upper bound of the range ("end"). If missing, no upper bound. Handling of the bound value is controlled with the @includeTo attribute.
Source

<xs:element name="GrantDate" type="db:DateRangeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

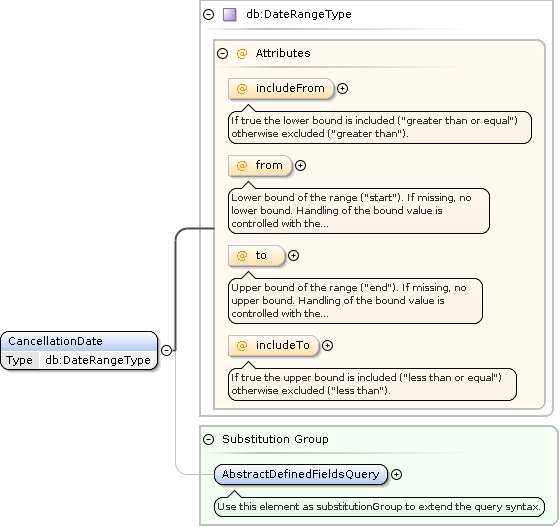

Element CancellationDate
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeFromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_fromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_todatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeTodatadelivery-common-1-0-0_xsd.tmp#DateRangeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type DateRangeType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Default Use Annotation
from dateOrDateTime optional
Lower bound of the range ("start"). If missing, no lower bound. Handling of the bound value is controlled with the @includeFrom attribute.
includeFrom xs:boolean true optional
If true the lower bound is included ("greater than or equal") otherwise excluded ("greater than").
includeTo xs:boolean false optional
If true the upper bound is included ("less than or equal") otherwise excluded ("less than").
to dateOrDateTime optional
Upper bound of the range ("end"). If missing, no upper bound. Handling of the bound value is controlled with the @includeTo attribute.
Source

<xs:element name="CancellationDate" type="db:DateRangeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

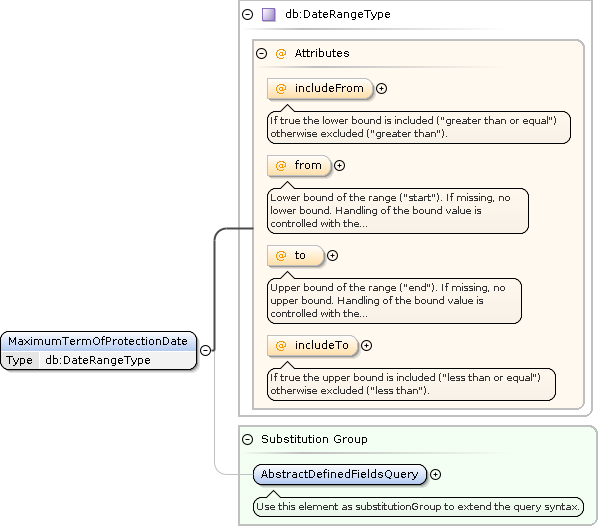

Element MaximumTermOfProtectionDate
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeFromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_fromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_todatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeTodatadelivery-common-1-0-0_xsd.tmp#DateRangeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type DateRangeType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Default Use Annotation
from dateOrDateTime optional
Lower bound of the range ("start"). If missing, no lower bound. Handling of the bound value is controlled with the @includeFrom attribute.
includeFrom xs:boolean true optional
If true the lower bound is included ("greater than or equal") otherwise excluded ("greater than").
includeTo xs:boolean false optional
If true the upper bound is included ("less than or equal") otherwise excluded ("less than").
to dateOrDateTime optional
Upper bound of the range ("end"). If missing, no upper bound. Handling of the bound value is controlled with the @includeTo attribute.
Source

<xs:element name="MaximumTermOfProtectionDate" type="db:DateRangeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

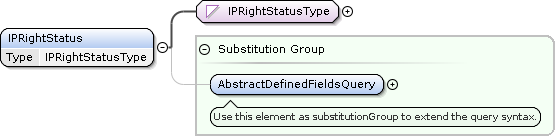

Element IPRightStatus
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-spc-1-0-0_xsd.tmp#IPRightStatusTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type IPRightStatusType
Properties
content simple
Facets
enumeration Active
enumeration Cancelled
Substitution Group Affiliation
Source

<xs:element name="IPRightStatus" type="IPRightStatusType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

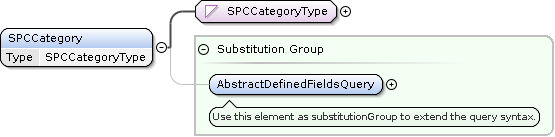

Element SPCCategory
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagramdatadelivery-spc-1-0-0_xsd.tmp#SPCCategoryTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type SPCCategoryType
Properties
content simple
Facets
enumeration Medicinal Product
enumeration Paediatric
enumeration Plant Protection Product
Substitution Group Affiliation
Source

<xs:element name="SPCCategory" type="SPCCategoryType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

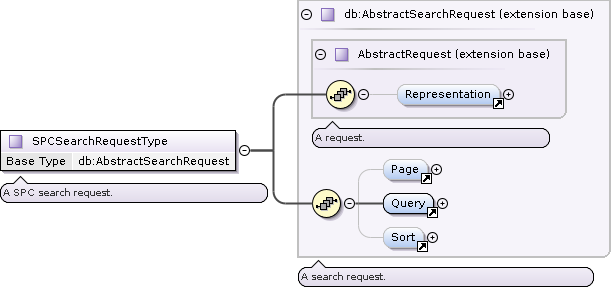

Complex Type SPCSearchRequestType
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Annotations

A SPC search request.
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#Representationdatadelivery-common-1-0-0_xsd.tmp#AbstractRequestdatadelivery-common-1-0-0_xsd.tmp#Pagedatadelivery-common-1-0-0_xsd.tmp#Querydatadelivery-common-1-0-0_xsd.tmp#Sortdatadelivery-common-1-0-0_xsd.tmp#AbstractSearchRequest
Type extension of AbstractSearchRequest
Type hierarchy
Used by
Model
Children Page, Query, Representation, Sort
Source

<xs:complexType name="SPCSearchRequestType">
  <xs:annotation>
    <xs:documentation>A SPC search request.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="db:AbstractSearchRequest"/>
  </xs:complexContent>
</xs:complexType>
Simple Type SPCCategoryType
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagram
Type restriction of xs:token
Facets
enumeration Medicinal Product
enumeration Paediatric
enumeration Plant Protection Product
Used by
Element SPCCategory
Source

<xs:simpleType name="SPCCategoryType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="Medicinal Product"/>
    <xs:enumeration value="Paediatric"/>
    <xs:enumeration value="Plant Protection Product"/>
  </xs:restriction>
</xs:simpleType>
Simple Type IPRightStatusType
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagram
Type restriction of xs:token
Facets
enumeration Active
enumeration Cancelled
Used by
Element IPRightStatus
Source

<xs:simpleType name="IPRightStatusType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="Active"/>
    <xs:enumeration value="Cancelled"/>
  </xs:restriction>
</xs:simpleType>
Simple Type SPCNumberType
Namespace urn:ige:schema:xsd:datadeliveryspc-1.0.0
Diagram
Diagram
Type restriction of xs:token
Facets
pattern [A-Z?][0-9?]{8}/[0-9?]{2}|[*]/[\\d]{1,2}|[A-Z?][0-9?]{1,7}[*]|[*]/[*]|[*]
Used by
Source

<xs:simpleType name="SPCNumberType">
  <xs:restriction base="xs:token">
    <xs:pattern value="[A-Z?][0-9?]{8}/[0-9?]{2}|[*]/[\\d]{1,2}|[A-Z?][0-9?]{1,7}[*]|[*]/[*]|[*]"/>
  </xs:restriction>
</xs:simpleType>
XML Schema documentation generated by ® XML Editor.
