Main schema datadelivery-spc-publication-1-0-0.xsd
Namespace urn:ige:schema:xsd:datadeliveryspcpublication-1.0.0
Properties
attribute form default unqualified
element form default qualified
version 1.0.0

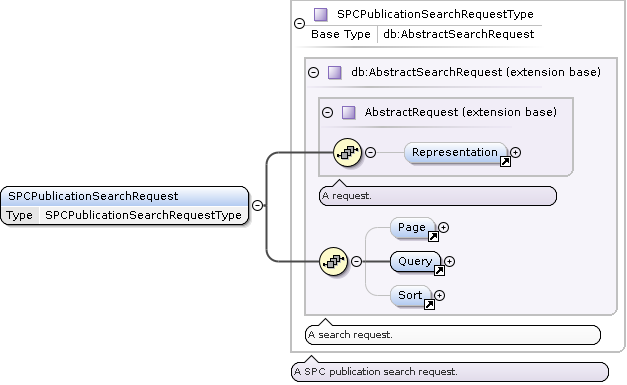

Element SPCPublicationSearchRequest
Namespace urn:ige:schema:xsd:datadeliveryspcpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#Representationdatadelivery-common-1-0-0_xsd.tmp#AbstractRequestdatadelivery-common-1-0-0_xsd.tmp#Pagedatadelivery-common-1-0-0_xsd.tmp#Querydatadelivery-common-1-0-0_xsd.tmp#Sortdatadelivery-common-1-0-0_xsd.tmp#AbstractSearchRequestdatadelivery-spc-publication-1-0-0_xsd.tmp#SPCPublicationSearchRequestType
Type SPCPublicationSearchRequestType
Type hierarchy
Properties
content complex
Model
Children Page, Query, Representation, Sort
Instance

<SPCPublicationSearchRequest xmlns="urn:ige:schema:xsd:datadeliveryspcpublication-1.0.0" xmlns:db="urn:ige:schema:xsd:datadeliverycommon-1.0.0">
  <db:Representation details="Default" images="" itemBags="" strictness="Strict" thumbnails="">{0,1}</db:Representation>
  <db:Page size="">{0,1}</db:Page>
  <db:Query slice="1/1">{1,1}</db:Query>
  <db:Sort>{0,1}</db:Sort>
</SPCPublicationSearchRequest>
Source

<xs:element name="SPCPublicationSearchRequest" type="SPCPublicationSearchRequestType"/>
Element PublicationDateSort
Namespace urn:ige:schema:xsd:datadeliveryspcpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#AbstractSortField
Substitution Group Affiliation
Source

<xs:element name="PublicationDateSort" substitutionGroup="db:AbstractSortField"/>
Element PublicationTitle
Namespace urn:ige:schema:xsd:datadeliveryspcpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="PublicationTitle" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element PublicationText
Namespace urn:ige:schema:xsd:datadeliveryspcpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="PublicationText" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element PublishedRemark
Namespace urn:ige:schema:xsd:datadeliveryspcpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="PublishedRemark" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

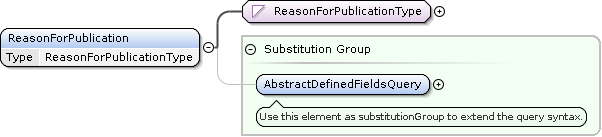

Element ReasonForPublication
Namespace urn:ige:schema:xsd:datadeliveryspcpublication-1.0.0
Diagram
Diagramdatadelivery-spc-publication-1-0-0_xsd.tmp#ReasonForPublicationTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type ReasonForPublicationType
Properties
content simple
Facets
enumeration Cancellation
enumeration Change
enumeration Correction
enumeration Grant
enumeration Publication
enumeration Publication SPC
enumeration Publication of paediatric SPC for pharmaceuticals CH/EP
enumeration SPC/paediatric SPC for pharmaceuticals granted for CH/EP
enumeration Withdrawal/Rejection
Substitution Group Affiliation
Source

<xs:element name="ReasonForPublication" type="ReasonForPublicationType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element IPRightNumber
Namespace urn:ige:schema:xsd:datadeliveryspcpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="IPRightNumber" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

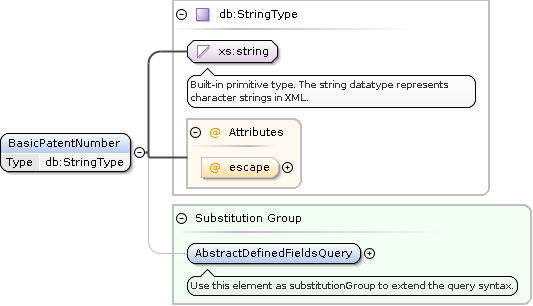

Element BasicPatentNumber
Namespace urn:ige:schema:xsd:datadeliveryspcpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="BasicPatentNumber" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

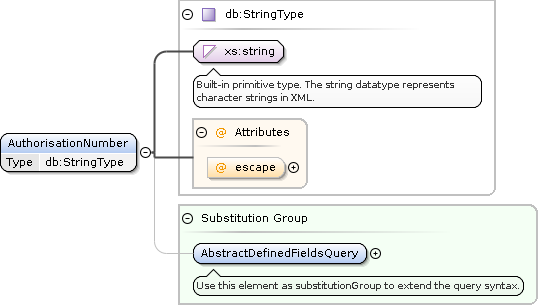

Element AuthorisationNumber
Namespace urn:ige:schema:xsd:datadeliveryspcpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="AuthorisationNumber" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

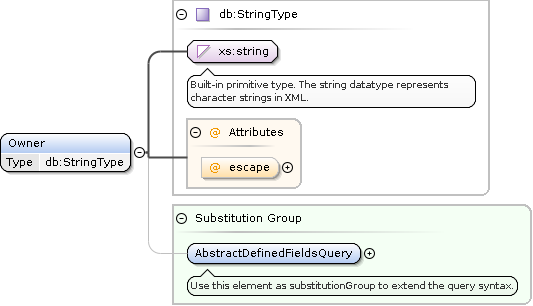

Element Owner
Namespace urn:ige:schema:xsd:datadeliveryspcpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="Owner" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element Representative
Namespace urn:ige:schema:xsd:datadeliveryspcpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="Representative" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

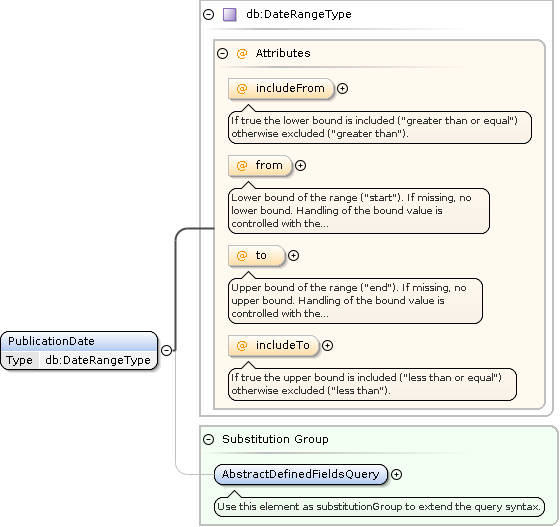

Element PublicationDate
Namespace urn:ige:schema:xsd:datadeliveryspcpublication-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeFromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_fromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_todatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeTodatadelivery-common-1-0-0_xsd.tmp#DateRangeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type DateRangeType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Default Use Annotation
from dateOrDateTime optional
Lower bound of the range ("start"). If missing, no lower bound. Handling of the bound value is controlled with the @includeFrom attribute.
includeFrom xs:boolean true optional
If true the lower bound is included ("greater than or equal") otherwise excluded ("greater than").
includeTo xs:boolean false optional
If true the upper bound is included ("less than or equal") otherwise excluded ("less than").
to dateOrDateTime optional
Upper bound of the range ("end"). If missing, no upper bound. Handling of the bound value is controlled with the @includeTo attribute.
Source

<xs:element name="PublicationDate" type="db:DateRangeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

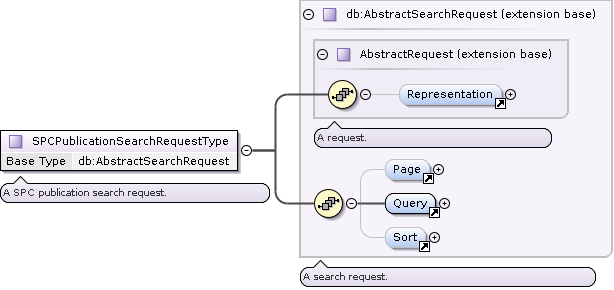

Complex Type SPCPublicationSearchRequestType
Namespace urn:ige:schema:xsd:datadeliveryspcpublication-1.0.0
Annotations

A SPC publication search request.
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#Representationdatadelivery-common-1-0-0_xsd.tmp#AbstractRequestdatadelivery-common-1-0-0_xsd.tmp#Pagedatadelivery-common-1-0-0_xsd.tmp#Querydatadelivery-common-1-0-0_xsd.tmp#Sortdatadelivery-common-1-0-0_xsd.tmp#AbstractSearchRequest
Type extension of AbstractSearchRequest
Type hierarchy
Used by
Model
Children Page, Query, Representation, Sort
Source

<xs:complexType name="SPCPublicationSearchRequestType">
  <xs:annotation>
    <xs:documentation>A SPC publication search request.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="db:AbstractSearchRequest"/>
  </xs:complexContent>
</xs:complexType>
Simple Type ReasonForPublicationType
Namespace urn:ige:schema:xsd:datadeliveryspcpublication-1.0.0
Diagram
Diagram
Type restriction of xs:token
Facets
enumeration Cancellation
enumeration Change
enumeration Correction
enumeration Grant
enumeration Publication
enumeration Publication SPC
enumeration Publication of paediatric SPC for pharmaceuticals CH/EP
enumeration SPC/paediatric SPC for pharmaceuticals granted for CH/EP
enumeration Withdrawal/Rejection
Used by
Source

<xs:simpleType name="ReasonForPublicationType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="Cancellation"/>
    <xs:enumeration value="Change"/>
    <xs:enumeration value="Correction"/>
    <xs:enumeration value="Grant"/>
    <xs:enumeration value="Publication"/>
    <xs:enumeration value="Publication SPC"/>
    <xs:enumeration value="Publication of paediatric SPC for pharmaceuticals CH/EP"/>
    <xs:enumeration value="SPC/paediatric SPC for pharmaceuticals granted for CH/EP"/>
    <xs:enumeration value="Withdrawal/Rejection"/>
  </xs:restriction>
</xs:simpleType>
