Main schema datadelivery-trademark-1-0-0.xsd
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Properties
attribute form default unqualified
element form default qualified

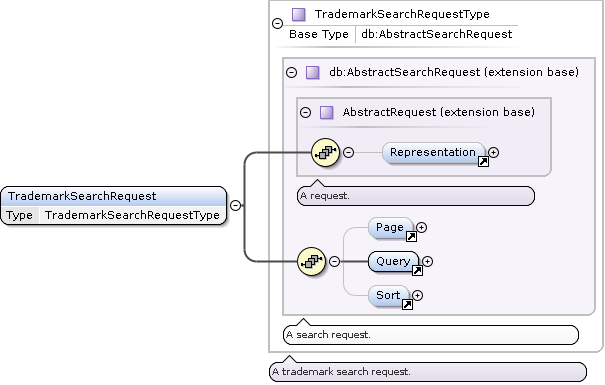

Element TrademarkSearchRequest
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#Representationdatadelivery-common-1-0-0_xsd.tmp#AbstractRequestdatadelivery-common-1-0-0_xsd.tmp#Pagedatadelivery-common-1-0-0_xsd.tmp#Querydatadelivery-common-1-0-0_xsd.tmp#Sortdatadelivery-common-1-0-0_xsd.tmp#AbstractSearchRequestdatadelivery-trademark-1-0-0_xsd.tmp#TrademarkSearchRequestType
Type TrademarkSearchRequestType
Type hierarchy
Properties
content complex
Model
Children Page, Query, Representation, Sort
Instance

<TrademarkSearchRequest xmlns="urn:ige:schema:xsd:datadeliverytrademark-1.0.0" xmlns:db="urn:ige:schema:xsd:datadeliverycommon-1.0.0">
  <db:Representation details="Default" images="" itemBags="" strictness="Strict" thumbnails="">{0,1}</db:Representation>
  <db:Page size="">{0,1}</db:Page>
  <db:Query slice="1/1">{1,1}</db:Query>
  <db:Sort>{0,1}</db:Sort>
</TrademarkSearchRequest>
Source

<xs:element name="TrademarkSearchRequest" type="TrademarkSearchRequestType"/>
Element ApplicationDateSort
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#AbstractSortField
Substitution Group Affiliation
Source

<xs:element name="ApplicationDateSort" substitutionGroup="db:AbstractSortField"/>
Element RegistrationDateSort
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#AbstractSortField
Substitution Group Affiliation
Source

<xs:element name="RegistrationDateSort" substitutionGroup="db:AbstractSortField"/>
Element ExpiryDateSort
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#AbstractSortField
Substitution Group Affiliation
Source

<xs:element name="ExpiryDateSort" substitutionGroup="db:AbstractSortField"/>

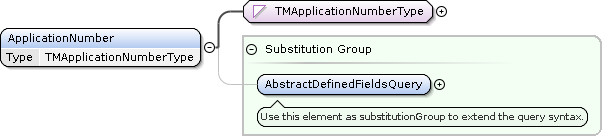

Element ApplicationNumber
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-trademark-1-0-0_xsd.tmp#TMApplicationNumberTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type TMApplicationNumberType
Properties
content simple
Facets
pattern [0-9?]{5}/[0-9?]{4}|[0-9?*]{1,5}/[0-9?*]{1,4}|[0-9?]{0,4}[*]
Substitution Group Affiliation
Source

<xs:element name="ApplicationNumber" type="TMApplicationNumberType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element TradeMarkNumber
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-trademark-1-0-0_xsd.tmp#TMTradeMarkNumberTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type TMTradeMarkNumberType
Properties
content simple
Facets
pattern ([0-9?]{7}|[0-9?*]{1,7})[A-Z]?
Substitution Group Affiliation
Source

<xs:element name="TradeMarkNumber" type="TMTradeMarkNumberType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element Title
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="Title" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element WordElement
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="WordElement" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

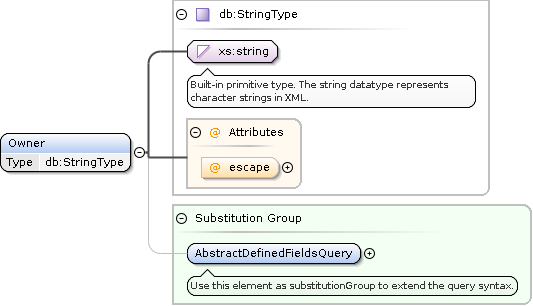

Element Owner
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="Owner" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

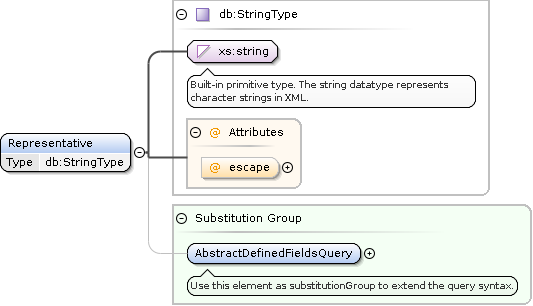

Element Representative
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="Representative" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element Licensee
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="Licensee" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element LGS
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#StringType_escapedatadelivery-common-1-0-0_xsd.tmp#StringTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type StringType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Use
escape xs:boolean optional
Source

<xs:element name="LGS" type="db:StringType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

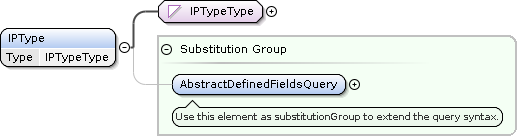

Element IPType
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-trademark-1-0-0_xsd.tmp#IPTypeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type IPTypeType
Properties
content simple
Facets
enumeration SwissTrademark
enumeration InternationalRegistration
Substitution Group Affiliation
Source

<xs:element name="IPType" type="IPTypeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

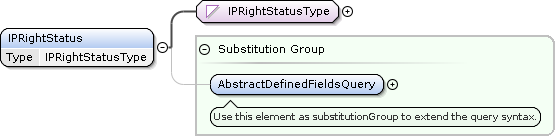

Element IPRightStatus
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-trademark-1-0-0_xsd.tmp#IPRightStatusTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type IPRightStatusType
Properties
content simple
Facets
enumeration Active
enumeration Initiated
enumeration Cancelled
Substitution Group Affiliation
Source

<xs:element name="IPRightStatus" type="IPRightStatusType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

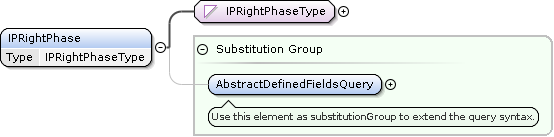

Element IPRightPhase
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-trademark-1-0-0_xsd.tmp#IPRightPhaseTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type IPRightPhaseType
Properties
content simple
Facets
enumeration Application
enumeration ProvisionalApplication
enumeration Registered
Substitution Group Affiliation
Source

<xs:element name="IPRightPhase" type="IPRightPhaseType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

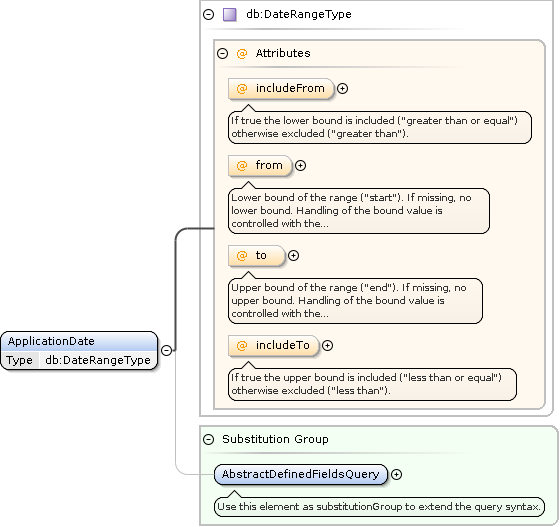

Element ApplicationDate
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeFromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_fromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_todatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeTodatadelivery-common-1-0-0_xsd.tmp#DateRangeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type DateRangeType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Default Use Annotation
from dateOrDateTime optional
Lower bound of the range ("start"). If missing, no lower bound. Handling of the bound value is controlled with the @includeFrom attribute.
includeFrom xs:boolean true optional
If true the lower bound is included ("greater than or equal") otherwise excluded ("greater than").
includeTo xs:boolean false optional
If true the upper bound is included ("less than or equal") otherwise excluded ("less than").
to dateOrDateTime optional
Upper bound of the range ("end"). If missing, no upper bound. Handling of the bound value is controlled with the @includeTo attribute.
Source

<xs:element name="ApplicationDate" type="db:DateRangeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

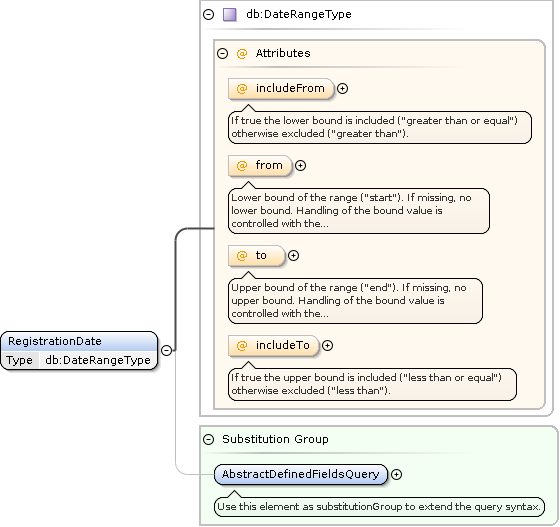

Element RegistrationDate
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeFromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_fromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_todatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeTodatadelivery-common-1-0-0_xsd.tmp#DateRangeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type DateRangeType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Default Use Annotation
from dateOrDateTime optional
Lower bound of the range ("start"). If missing, no lower bound. Handling of the bound value is controlled with the @includeFrom attribute.
includeFrom xs:boolean true optional
If true the lower bound is included ("greater than or equal") otherwise excluded ("greater than").
includeTo xs:boolean false optional
If true the upper bound is included ("less than or equal") otherwise excluded ("less than").
to dateOrDateTime optional
Upper bound of the range ("end"). If missing, no upper bound. Handling of the bound value is controlled with the @includeTo attribute.
Source

<xs:element name="RegistrationDate" type="db:DateRangeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

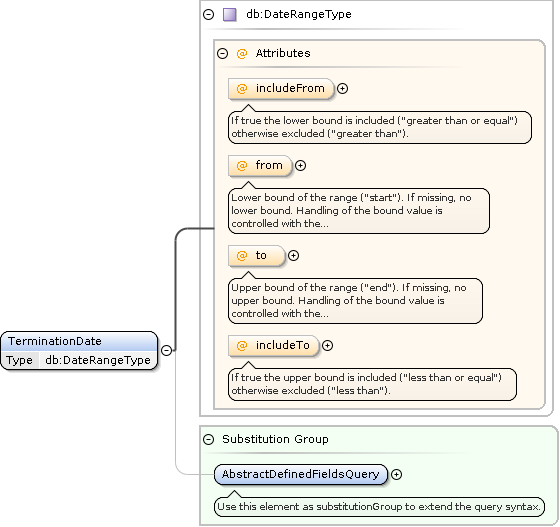

Element TerminationDate
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeFromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_fromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_todatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeTodatadelivery-common-1-0-0_xsd.tmp#DateRangeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type DateRangeType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Default Use Annotation
from dateOrDateTime optional
Lower bound of the range ("start"). If missing, no lower bound. Handling of the bound value is controlled with the @includeFrom attribute.
includeFrom xs:boolean true optional
If true the lower bound is included ("greater than or equal") otherwise excluded ("greater than").
includeTo xs:boolean false optional
If true the upper bound is included ("less than or equal") otherwise excluded ("less than").
to dateOrDateTime optional
Upper bound of the range ("end"). If missing, no upper bound. Handling of the bound value is controlled with the @includeTo attribute.
Source

<xs:element name="TerminationDate" type="db:DateRangeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element ExpiryDate
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeFromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_fromdatadelivery-common-1-0-0_xsd.tmp#DateRangeType_todatadelivery-common-1-0-0_xsd.tmp#DateRangeType_includeTodatadelivery-common-1-0-0_xsd.tmp#DateRangeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type DateRangeType
Properties
content complex
Substitution Group Affiliation
Attributes
QName Type Default Use Annotation
from dateOrDateTime optional
Lower bound of the range ("start"). If missing, no lower bound. Handling of the bound value is controlled with the @includeFrom attribute.
includeFrom xs:boolean true optional
If true the lower bound is included ("greater than or equal") otherwise excluded ("greater than").
includeTo xs:boolean false optional
If true the upper bound is included ("less than or equal") otherwise excluded ("less than").
to dateOrDateTime optional
Upper bound of the range ("end"). If missing, no upper bound. Handling of the bound value is controlled with the @includeTo attribute.
Source

<xs:element name="ExpiryDate" type="db:DateRangeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

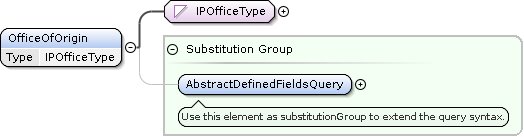

Element OfficeOfOrigin
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-trademark-1-0-0_xsd.tmp#IPOfficeTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type IPOfficeType
Properties
content simple
Facets
pattern [a-zA-Z]{2}
Substitution Group Affiliation
Source

<xs:element name="OfficeOfOrigin" type="IPOfficeType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

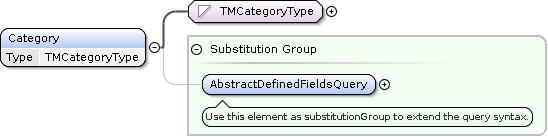

Element Category
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-trademark-1-0-0_xsd.tmp#TMCategoryTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type TMCategoryType
Properties
content simple
Facets
enumeration IndividualMark
Individualmarke
enumeration CollectiveMark
Kollektivmarke
enumeration CertificationMark
Garantiemarke
enumeration GeographicalMark
Geografische Marke, in ST.96 als CertificationMark
Substitution Group Affiliation
Source

<xs:element name="Category" type="TMCategoryType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Element FeatureCategory
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-trademark-1-0-0_xsd.tmp#TMFeatureCategoryTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type TMFeatureCategoryType
Properties
content simple
Facets
enumeration Word
enumeration Figurative
enumeration Combined
enumeration Sound
enumeration ThreeDimensional
enumeration Colour
enumeration Motion
enumeration Position
enumeration Hologram
Substitution Group Affiliation
Source

<xs:element name="FeatureCategory" type="TMFeatureCategoryType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

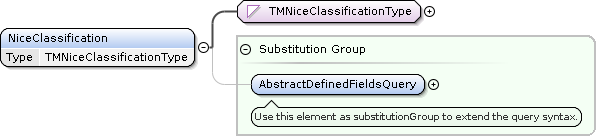

Element NiceClassification
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-trademark-1-0-0_xsd.tmp#TMNiceClassificationTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type TMNiceClassificationType
Properties
content simple
Facets
maxInclusive 45
minInclusive 1
Substitution Group Affiliation
Source

<xs:element name="NiceClassification" type="TMNiceClassificationType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

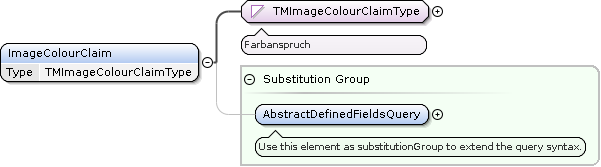

Element ImageColourClaim
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-trademark-1-0-0_xsd.tmp#TMImageColourClaimTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type TMImageColourClaimType
Properties
content simple
Substitution Group Affiliation
Source

<xs:element name="ImageColourClaim" type="TMImageColourClaimType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>

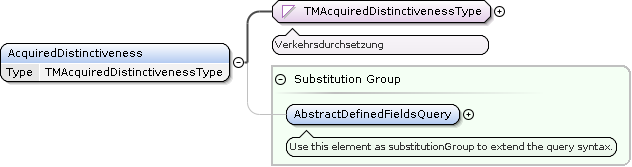

Element AcquiredDistinctiveness
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagramdatadelivery-trademark-1-0-0_xsd.tmp#TMAcquiredDistinctivenessTypedatadelivery-common-1-0-0_xsd.tmp#AbstractDefinedFieldsQuery
Type TMAcquiredDistinctivenessType
Properties
content simple
Substitution Group Affiliation
Source

<xs:element name="AcquiredDistinctiveness" type="TMAcquiredDistinctivenessType" substitutionGroup="db:AbstractDefinedFieldsQuery"/>
Complex Type TrademarkSearchRequestType
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Annotations

A trademark search request.
Diagram
Diagramdatadelivery-common-1-0-0_xsd.tmp#Representationdatadelivery-common-1-0-0_xsd.tmp#AbstractRequestdatadelivery-common-1-0-0_xsd.tmp#Pagedatadelivery-common-1-0-0_xsd.tmp#Querydatadelivery-common-1-0-0_xsd.tmp#Sortdatadelivery-common-1-0-0_xsd.tmp#AbstractSearchRequest
Type extension of AbstractSearchRequest
Type hierarchy
Used by
Model
Children Page, Query, Representation, Sort
Source

<xs:complexType name="TrademarkSearchRequestType">
  <xs:annotation>
    <xs:documentation>A trademark search request.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="db:AbstractSearchRequest"/>
  </xs:complexContent>
</xs:complexType>
Simple Type IPTypeType
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagram
Type restriction of xs:token
Facets
enumeration SwissTrademark
enumeration InternationalRegistration
Used by
Element IPType
Source

<xs:simpleType name="IPTypeType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="SwissTrademark"/>
    <xs:enumeration value="InternationalRegistration"/>
  </xs:restriction>
</xs:simpleType>
Simple Type IPRightStatusType
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagram
Type restriction of xs:token
Facets
enumeration Active
enumeration Initiated
enumeration Cancelled
Used by
Element IPRightStatus
Source

<xs:simpleType name="IPRightStatusType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="Active"/>
    <xs:enumeration value="Initiated"/>
    <xs:enumeration value="Cancelled"/>
  </xs:restriction>
</xs:simpleType>
Simple Type IPRightPhaseType
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagram
Type restriction of xs:token
Facets
enumeration Application
enumeration ProvisionalApplication
enumeration Registered
Used by
Element IPRightPhase
Source

<xs:simpleType name="IPRightPhaseType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="Application"/>
    <xs:enumeration value="ProvisionalApplication"/>
    <xs:enumeration value="Registered"/>
  </xs:restriction>
</xs:simpleType>
Simple Type TMCategoryType
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagram
Type restriction of xs:token
Facets
enumeration IndividualMark
Individualmarke
enumeration CollectiveMark
Kollektivmarke
enumeration CertificationMark
Garantiemarke
enumeration GeographicalMark
Geografische Marke, in ST.96 als CertificationMark
Used by
Element Category
Source

<xs:simpleType name="TMCategoryType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="IndividualMark">
      <xs:annotation>
        <xs:documentation>Individualmarke</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CollectiveMark">
      <xs:annotation>
        <xs:documentation>Kollektivmarke</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="CertificationMark">
      <xs:annotation>
        <xs:documentation>Garantiemarke</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="GeographicalMark">
      <xs:annotation>
        <xs:documentation>Geografische Marke, in ST.96 als CertificationMark</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type TMFeatureCategoryType
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagram
Type restriction of xs:token
Facets
enumeration Word
enumeration Figurative
enumeration Combined
enumeration Sound
enumeration ThreeDimensional
enumeration Colour
enumeration Motion
enumeration Position
enumeration Hologram
Used by
Element FeatureCategory
Source

<xs:simpleType name="TMFeatureCategoryType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="Word"/>
    <xs:enumeration value="Figurative"/>
    <xs:enumeration value="Combined"/>
    <xs:enumeration value="Sound"/>
    <xs:enumeration value="ThreeDimensional"/>
    <xs:enumeration value="Colour"/>
    <xs:enumeration value="Motion"/>
    <xs:enumeration value="Position"/>
    <xs:enumeration value="Hologram"/>
  </xs:restriction>
</xs:simpleType>
Simple Type IPOfficeType
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagram
Type restriction of xs:token
Facets
pattern [a-zA-Z]{2}
Used by
Element OfficeOfOrigin
Source

<xs:simpleType name="IPOfficeType">
  <xs:restriction base="xs:token">
    <xs:pattern value="[a-zA-Z]{2}"/>
  </xs:restriction>
</xs:simpleType>
Simple Type TMNiceClassificationType
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagram
Type restriction of xs:positiveInteger
Facets
maxInclusive 45
minInclusive 1
Used by
Source

<xs:simpleType name="TMNiceClassificationType">
  <xs:restriction base="xs:positiveInteger">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="45"/>
  </xs:restriction>
</xs:simpleType>
Simple Type TMImageColourClaimType
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Annotations

Farbanspruch
Diagram
Diagram
Type xs:boolean
Used by
Source

<xs:simpleType name="TMImageColourClaimType">
  <xs:annotation>
    <xs:documentation>Farbanspruch</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:boolean"/>
</xs:simpleType>
Simple Type TMAcquiredDistinctivenessType
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Annotations

Verkehrsdurchsetzung
Diagram
Diagram
Type xs:boolean
Used by
Source

<xs:simpleType name="TMAcquiredDistinctivenessType">
  <xs:annotation>
    <xs:documentation>Verkehrsdurchsetzung</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:boolean"/>
</xs:simpleType>
Simple Type TMTradeMarkNumberType
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagram
Type restriction of xs:token
Facets
pattern ([0-9?]{7}|[0-9?*]{1,7})[A-Z]?
Used by
Element TradeMarkNumber
Source

<xs:simpleType name="TMTradeMarkNumberType">
  <xs:restriction base="xs:token">
    <xs:pattern value="([0-9?]{7}|[0-9?*]{1,7})[A-Z]?"/>
  </xs:restriction>
</xs:simpleType>
Simple Type TMApplicationNumberType
Namespace urn:ige:schema:xsd:datadeliverytrademark-1.0.0
Diagram
Diagram
Type restriction of xs:token
Facets
pattern [0-9?]{5}/[0-9?]{4}|[0-9?*]{1,5}/[0-9?*]{1,4}|[0-9?]{0,4}[*]
Used by
Source

<xs:simpleType name="TMApplicationNumberType">
  <xs:restriction base="xs:token">
    <xs:pattern value="[0-9?]{5}/[0-9?]{4}|[0-9?*]{1,5}/[0-9?*]{1,4}|[0-9?]{0,4}[*]"/>
  </xs:restriction>
</xs:simpleType>
XML Schema documentation generated by ® XML Editor.
